TSKBM-P Receiver Device for Wireless Data Processing NKRМ.464333.001

Railway & Traffic Control Equipment

Manufacturer: NEUROKOM OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

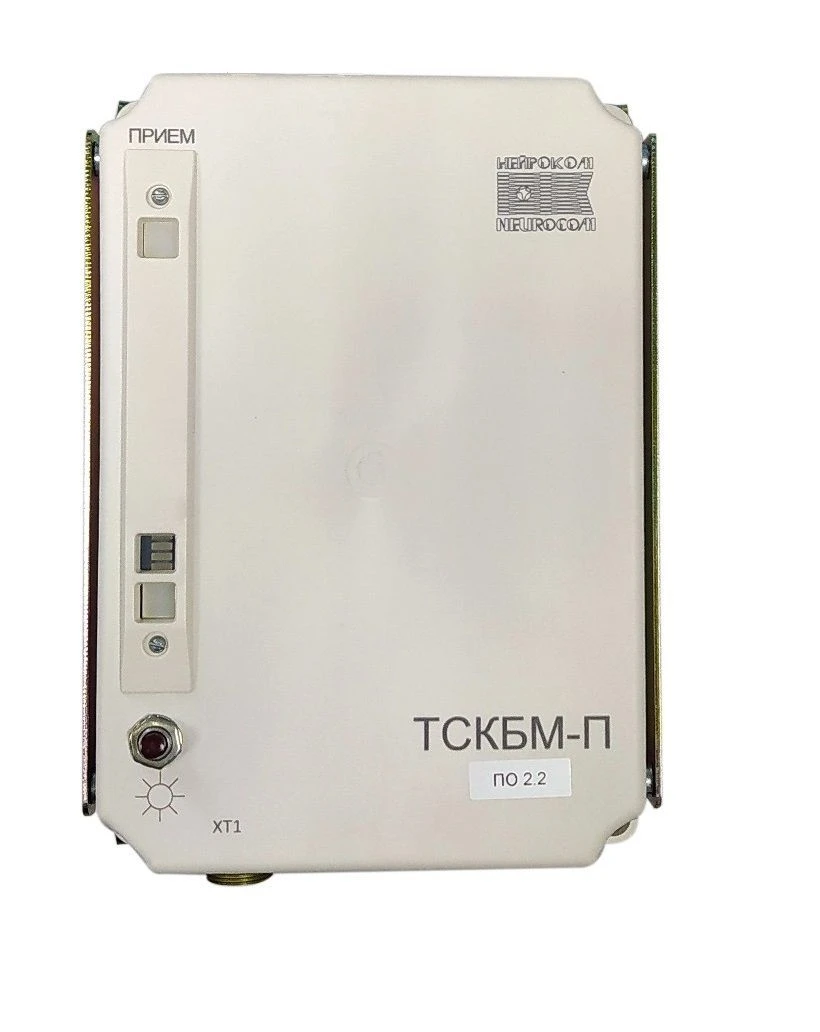

The TSCBM-P device (receiver) is designed to receive and primary processing of information transmitted via radio channel from the TSCBM-N device and its subsequent transmission via IRPS line to the TSCBM-K controller. The TSCBM-P device has three indicators:

- "RECEIVE" indicator of yellow light for indication of radio signal reception from the TSKBM-N;
yellow "Preliminary signalling" indicator;
"Request for confirmation of operability" indicator of red light.

The TSCBM-P device NKRM.464333.001 is a part of the TSCBM systems of the following versions:

- basic;
MTBF;

and co-operates with the TSCBM-N device and TSCBM-K units NKRM.466539.003 and NKRM.466539.003-03.

Specifications

Assigned service life

20 year

Warranty period

3 year

Power supply

12±1.5 V

Current consumption, max.

0.4 A

Operating frequency range

1700±25

Completeness

in accordance with specification NKRM.464333.001
