Tornado M300 Tow-Behind Wood Chipper for Efficient Wood Processing

Specialized Transport Trailers

Manufacturer:Krasnoyarsk Small-Series Equipment Plant LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

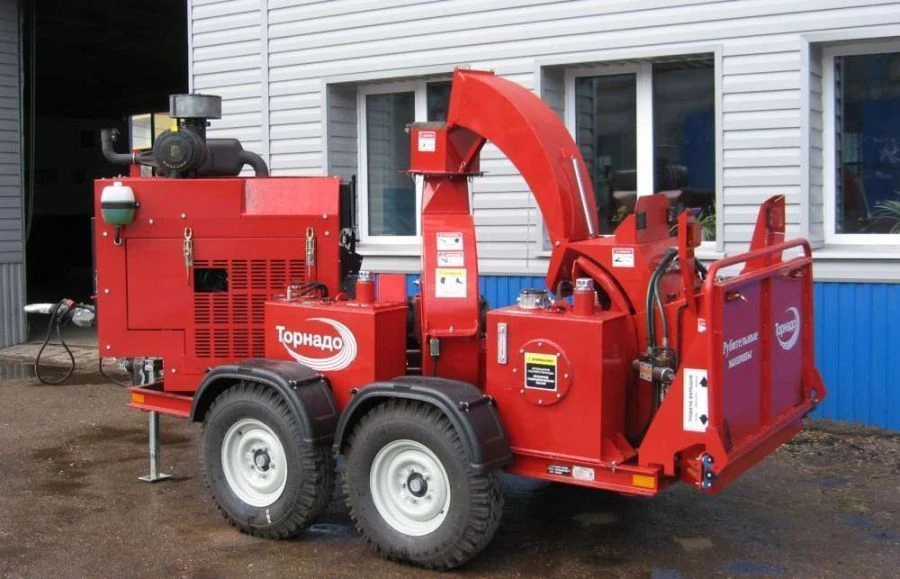

The trailed shredder TORNADO M300 is designed for processing wood up to 260 mm in diameter into chips. The trailed shredder TORNADO M300 is a specialised equipment with a diesel engine, fuel tank, hydraulic oil pumping station for power supply and control of the equipment functions, closed space for wood shredding, inlet chute for unshredded wood and outlet socket for ejection of shredded wood in the form of chips.

Specifications

Type of product according to PP RF 616

Trailers and semi-trailers other, not included in other groupings

Type

886021

Front track

1560 mm

Rear track

1560 mm

Payload

2600 kg

Wheel arrangement

4 wheels, no drive wheels

Base tractor

lorry of appropriate load-carrying capacity

Engine

Diesel

Dimensions

5050*1850*2300 mm

Weight

2570 kg

drawbar

Ring with an inner diameter of 76 mm with the possibility of quick adjustment of hitch height in the range from 460 mm to 1080 mm from ground level

Climatic version

UHL

frame

the shredder frame and the trailer frame are a single and indivisible load-bearing structure of the equipment

Number of wheels

4 pcs

Number of axles

2 pcs

Number of revolutions of the shredding unit

1100

Hydraulic tank capacity

65 l

Fuel tank capacity

Flat grinder, Specialised grinder l

Width of inlet opening (at the pick-up line of the rollers)

400 mm

Inlet height (at the roller pick-up line)

310 mm

Feed table width

1200 mm

Feed table length (from edge to rollers)

1000 mm

Feeding table

????????????????

Feed chute width

1200 mm

Feed chute height

700 mm

Knife type

double-sided cutting edge

Number of knives

2 pcs

Disk width

27 mm

Disk diameter

1000 mm

Type of shredding unit

Disk

Grinding diameter

260 mm

Feeding system

Hydraulic feed, 1 roller

Motor power

81 hp

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
