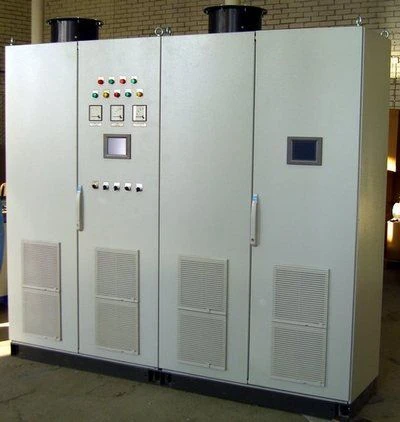

Thyristor static excitation system STS-2P-240-2100 UHL4
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Static thyristor excitation system STS is designed to supply excitation windings of generators with automatically regulated direct (rectified) current. The excitation system is made with one or two autonomous and equivalent converter-regulating channels, different versions of thyristor converters with air or water cooling. Excitation systems provide all modes of operation of generators in accordance with the requirements of regulatory and technical documentation.
Specifications
Rated generator rotor current
1846 A
Long-term permissible excitation current CB
2100 A
Rated rotor voltage
201 V
Long-term permissible voltage CB
240 V
Limit steady-state voltage at boosting, not more than
600 V
Limit steady state current at boosting, not more
3692 A
Duration of excitation boost, not more than
SBVVBG
Error of voltage maintenance on turbine generator busbars relative to static characteristic
0.5 %
