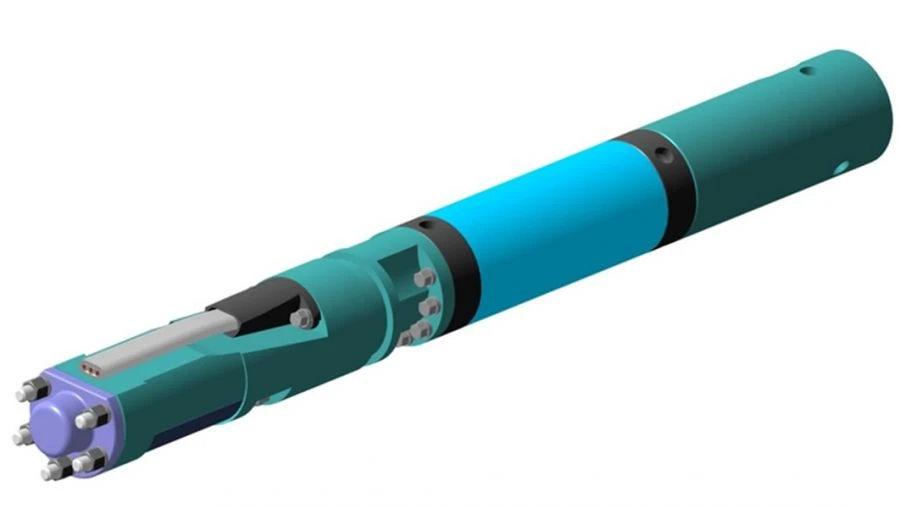

Three-Phase Submersible Asynchronous Motor PЭД-Я for Continuous Operation

Universal Electric Motors 375W+

Manufacturer: ALMAZ - NEFTESERVIS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Asynchronous submersible three-phase squirrel cage oil-filled electric motors of PED-Ya series single-section for operation in p Asynchronous submersible three-phase squirrel cage oil-filled electric motors of PED-Ya series single-section for operation in p

Description

Asynchronous submersible oil-filled motors with squirrel cage rotor of PED series in 117 mm dimension. Designed for continuous operation from AC network with frequency from 35 to 70 Hz, while the nominal is the frequency of the network 50 Hz. Motors are used as adjustable drive for submersible electric centrifugal pumps for pumping reservoir fluid from oil wells with the angle of deviation from the vertical at the place of motor suspension not more than 60°. Separate versions can be supplied as a drive as part of installations for pumping fluid into the sub-packer space to raise the pressure of formation fluid.

Specifications

Rated power

45 kW

Voltage

2400 V

Climatic version

B5 according to GOST 15150

Motor weight

349 kg

Body diameter

117 mm

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
