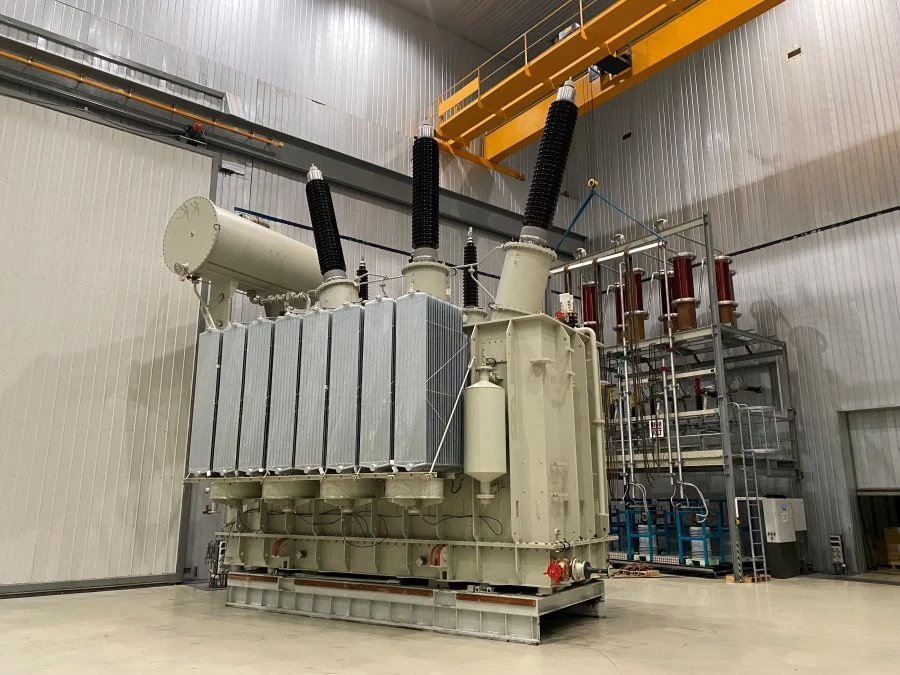

Three-Phase Oil Power Transformer TDT-125000/220 U1

Three-Phase Oil Power Transformer TDT-125000/220 U1

$90,000 - $300,000 USD

MOQ: 1 pieces

Key Features

Rated power: 125000 daL

Height: 8899 mm

Nominal voltage: 220 daL

Length: 8968 mm

Supplier Information

Voronezh Transformer LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 17544-85, GOST 12965-85.
Rated power: 125000 kVA; rated current of HV winding: 298,2 A, rated current of SN winding: 596,4; Rated current of LV winding: 6873,2 A; Rated voltage of HV winding: 242 kV, Rated voltage of SN winding: 121 kV rated LV winding voltage: 10.5 kV; Number of phases: 3; Number of windings: high voltage winding, medium voltage winding, low voltage winding; Dielectric type: transformer oil..

Specifications

Rated power

125000 daL

Height

8899 mm

Nominal voltage

220 daL

Length

8968 mm

Width

5212 mm

Possibility of regulation under voltage

Armoured glass

Type of insulation

Oil

Number of transformer phases

Three-phase

Transformer type

Oil
