Three-Phase Inductor LKSGLB-0.11/760 for Voltage Stabilization
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry

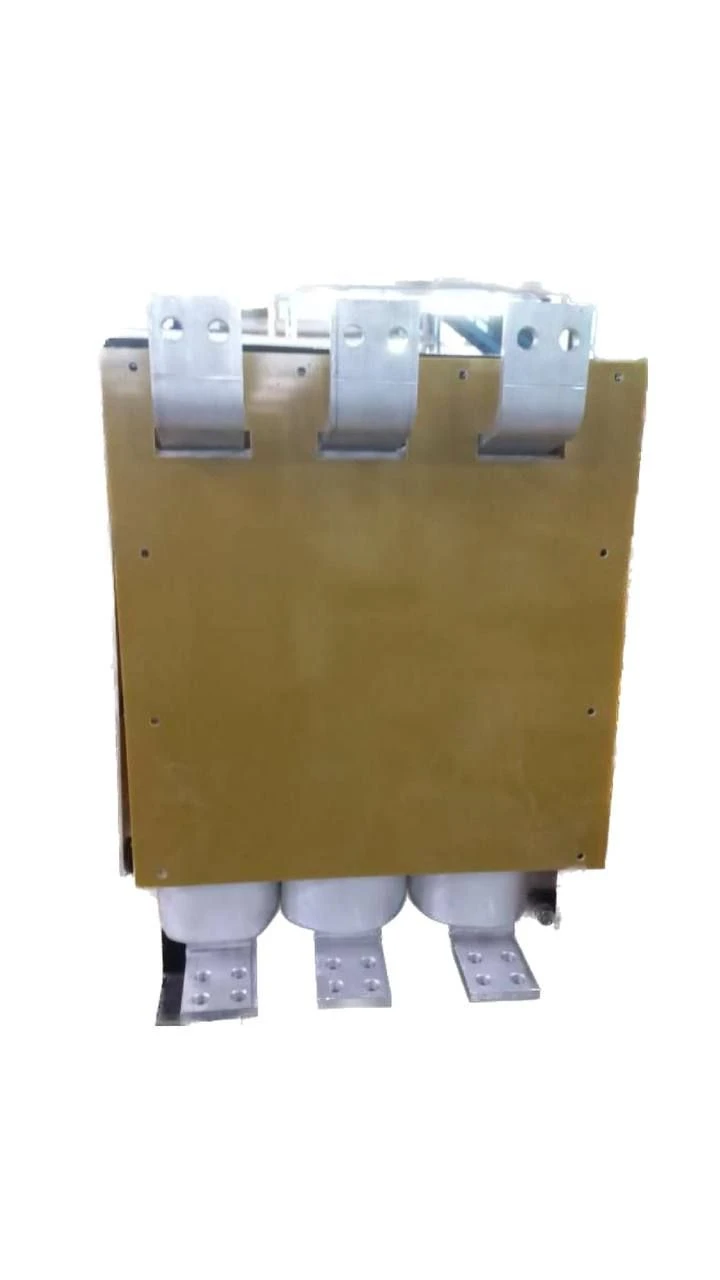

Three-Phase Inductor for Frequency Converter LKSGLB-0.11/760 Available for Import

Three-Phase Inductor LKSGLB-0.11/760 for Frequency Converter Applications

Inductive Coils & Chokes
Manufacturer: ELLIPS LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Three-phase choke LKSGLB-0.11/760 is designed for installation at the output of the frequency converter to improve the quality of the output voltage, protect it from voltage pulses and short-circuits on the motor.

Specifications

Operating temperature range
60 °C
Nominal inductance
0.00011
Operating current
760 A
dimensions (L*W*H)
382*390*595
Length
382 mm
Width
390 mm
Height
595 mm
Model
LKSGLB
Type
Choke
Type of insulation
Air-barrier
Possibility of regulation under voltage
no

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
