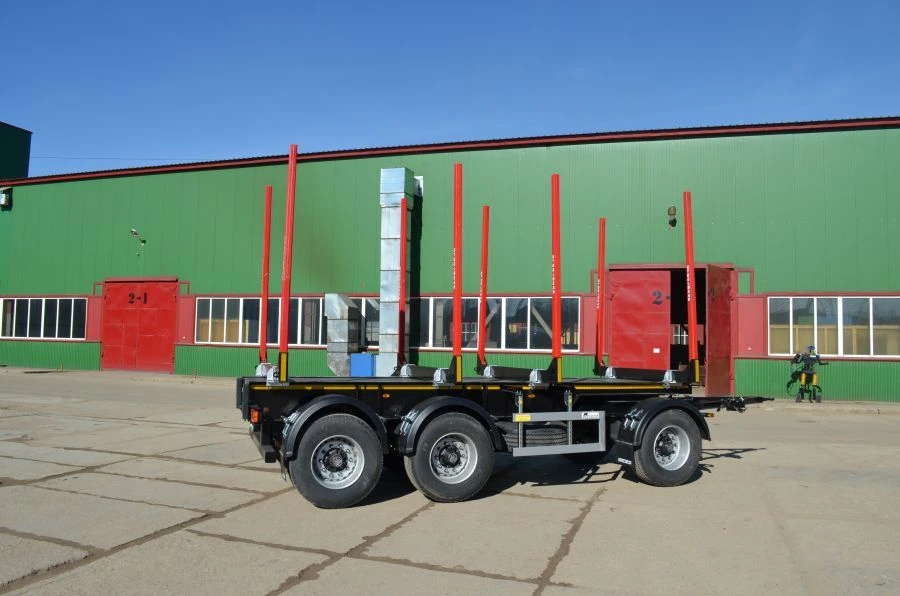

Three-Axis Log Trailer PR-27L - Durable Design for Heavy Loads

Three-Axis Log Trailer PR-27L - Ideal for Transporting Logs and Heavy Materials

Manufacturer:VOMZ OJSC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Sorting trailer is a solid or sliding platform with solid or sliding cones. Reinforced chassis made of two longitudinal I-beam spars; Frame construction is made of high-strength carbon steel; Reinforced drawbar with attachment through silentblocks, located in the centre, closed with corrugated sheet from above; Swivel double-row ring with permissible load of 26 tonnes; Central lubrication system of the swivel ring; Reinforced lock of the swivel bogie; On the end of the frame in the front there is a pipe for lifting the trailer by manipulator; Fasteners for pulling the load, in the form of a winch, installed rigidly on the frame; Straps for securing the assortment; Stakes with detachable posts, made of stainless steel; Decking made of laminated multilayer birch plywood, fluted surface; Painting the chassis with two-component acrylic system, with a preliminary application of two-component anti-corrosion zinc-containing primer, protecting the frame from "under-layer" corrosion.

Specifications

Type of product according to PP RF 616
Trailers (semi-trailers) for cars and trucks, motorcycles, scooters and quadricycles
Number of axles
3
Type of trailer
Sorting truck
Gross weight
3.5...10 t
Base machine type
truck
Front track
1800...2250 mm
Axle load capacity
7...12 t
Width
2500...3500 mm
Length in extended position
8000...26700 mm
Length
7500...16700 mm
