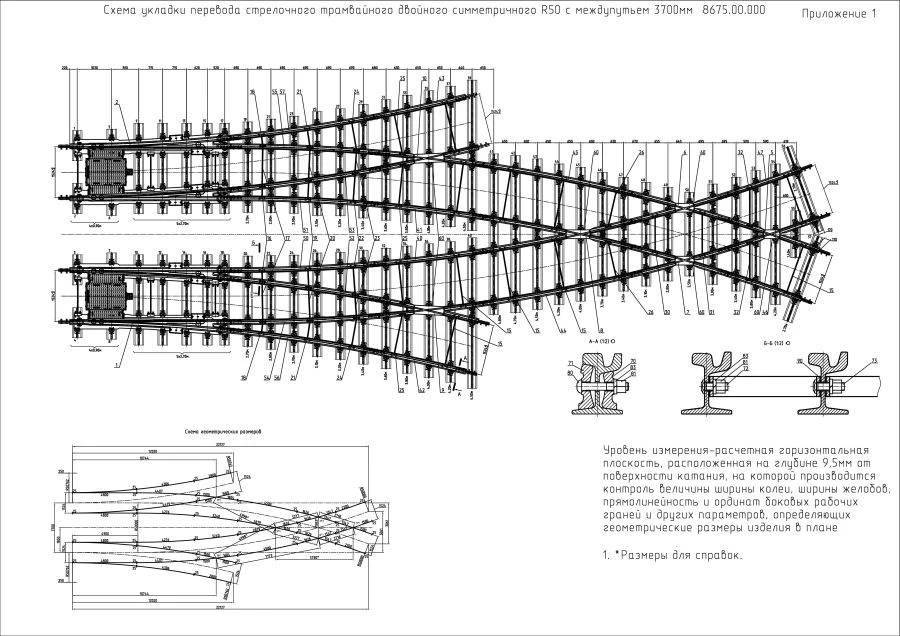

Symmetrical R50 Double Switch for Tramways with Flexible Points (Model 8675.00.000)

Tramway double symmetrical R50 switch with flexible sharps with 3700 mm track spacing (project 8675.00.000): a special design of rail tracks used for connection, branching and crossing of tram tracks in order to direct the movement of rolling stock from one track to another. The crossing consists of the following items: two R50 tramway arrows with flexible sharps; six crosses; counter rails and rails of connecting tracks; a set of parts and fastenings. The transfer is operated outdoors in macroclimatic regions of temperate and cold climate, as a product UHL1 according to GOST 15150. The transfer is designed for the passage of rolling stock with wheel bands according to GOST 25712.
