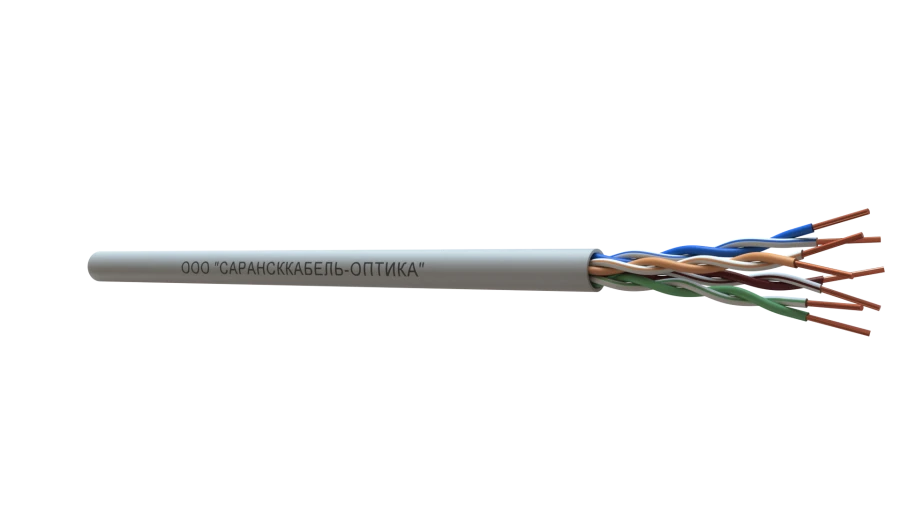

Symmetrical Communication Cable for Digital Transmission U/UTP - Ideal for Structured Cabling Systems

For operation in structured cabling systems according to international standard ISO/IEC 11801 and in broadband networks in the frequency range up to 1000 MHz at operating voltage up to 72 V DC. Cables with polyethylene sheathing should correspond to climatic execution UHL, categories of placement 1, 2 according to GOST 15150, cables with sheathing made of other materials - U, categories of placement 3, 4 The cable contains single-wire conductive copper conductors, sheathed in polymer material. Insulated conductors with different colour markings and twisted into pairs.

The number of pairs in the cable is from 1 to 4. Pairs are twisted into a core. The twisted core is covered with polyethylene terephthalate tape.

Cable outer sheath is made of light-stabilised polyethylene or polyvinylchloride plasticate, or polyvinylchloride plasticate of reduced fire hazard with reduced smoke and gas emission, or of halogen-free polymer composition.
