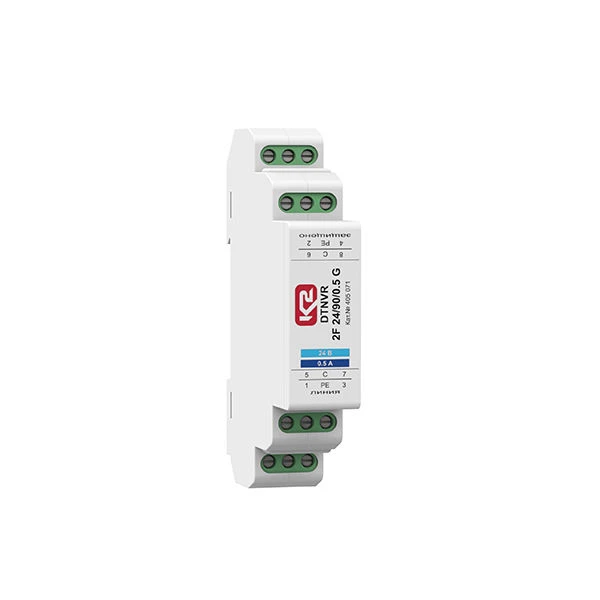

Surge Protection Device DTNVR 2F 24/90/0.5 G (LT) for Equipment Safety

Series DTNVR *F **/90/0.5 G, TU 3428-002-79740390-2007 are designed to protect equipment from impulse overvoltages (lightning protection, protection from electrostatic discharges, etc.) within 0V - 2 lightning protection zones in accordance with GOST R IEC 62305-1-2010. Rated current IL= 0,5 A. Number of protected conductor pairs 2, connection by means of screw terminals 4,00 mm.

Capable of passing the rated discharge current In(8/20)= 20 kA. Data transfer rate up to 1 Mbit/s. Provision is made for connection of the cable screen (C) to the equipotential bonding system through a gas-filled arrester.
