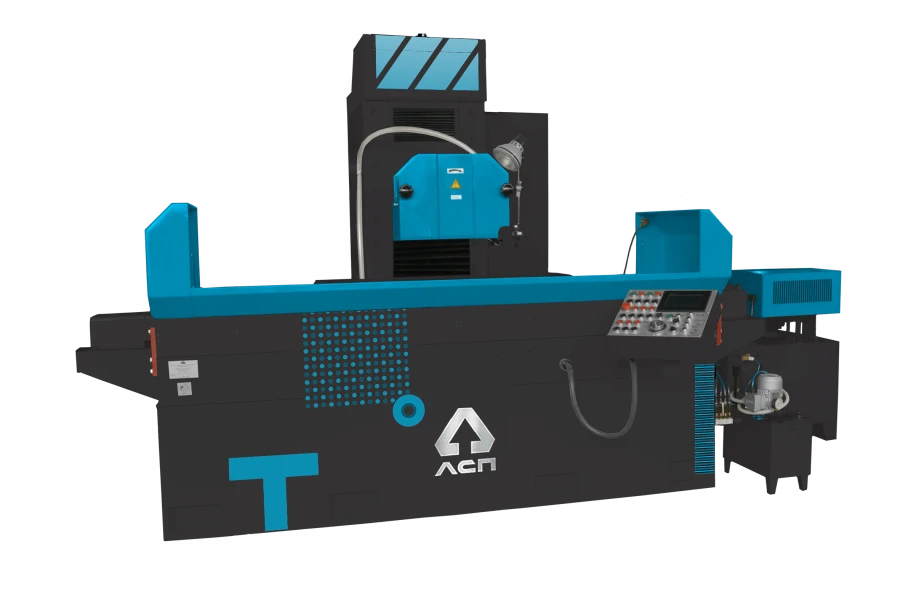

Flat Surface Grinding Machine 3L722AF2 for Precision Surface Finishing

Surface grinding machines with a rectangular table and horizontal spindle for grinding by periphery and end of the circle of flat and shaped surfaces of workpieces made of magnetic and non-magnetic materials (hereinafter referred to as the machine). Depending on the shape, dimensions and material, the workpieces to be ground can be fixed in a fixture or on an electromagnetic plate. Accuracy class - B; A according to GOST 8-82.

Type of climatic execution of the machine - UHL4 according to GOST 15150. Placement category of the machine - 4.1 according to GOST 15150. The machine is equipped with a software control system based on a programmable logic controller manufactured by "Delta Electronics", a touch panel operator, two servo drives (transverse and vertical feeds).

The touch panel of the operator simultaneously fulfils the functions of the machine control centre. Software control of the machine allows to work in manual mode and in semi-automatic mode: starting position - rough grinding - grinding wheel dressing with compensation of dressing value - finish grinding with output.....
