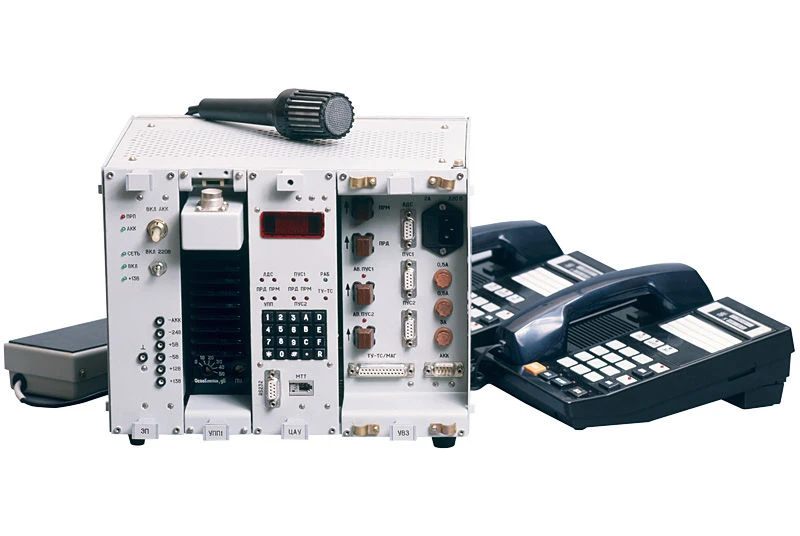

Radio station RS-46MC

Family of stationary simplex radios are designed to work in the networks of train, repair and operational and station radio communication in KV and VHF bands. The radios provide control over a linear communication channel from the side of the control station and from the side of control panels, which can be located both directly in the place of installation of the radio, and at a distance of up to 20 km via physical lines or using communication channels. The electrical parameters and characteristics of the radio station ensure joint operation with the radio equipment operated on the railway network.

In the range of hectometre waves the radio station provides operation in the single-frequency simplex mode on one of two frequencies 2.130 and 2.150 MHz. In the range of metre waves radio station provides operation in single and dual-frequency simplex mode on any of 171 operating frequencies in the range from 151,725 to 156,000 MHz with a frequency difference between neighbouring channels of 25 kHz.
