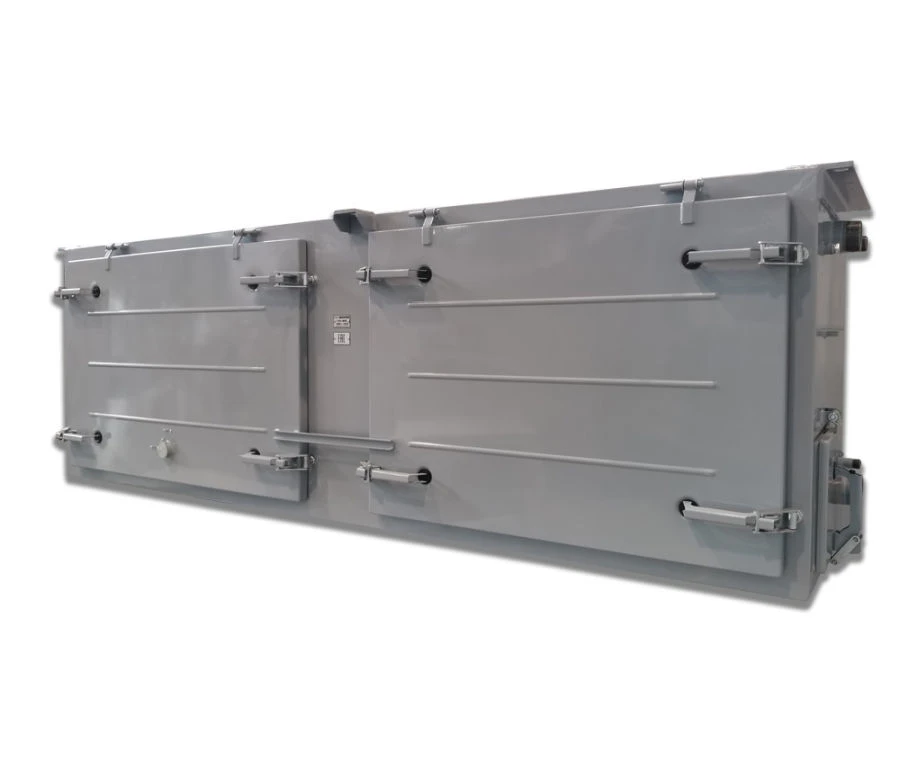

Static Converter PCh-24-03-U1 for Air Conditioning Systems

Available for Import

Static Converter PCh-24-03-U1 for Efficient Air Conditioning Systems

Static Power Converters

Manufacturer: GAMEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Static converter PCh-24-03-U1 is designed to supply air conditioning units and other consumers of passenger cars with autonomous power supply of the new generation "2019" two-car coupes, compartment (model 61-4517) and placekart (model 61-4516). These cars are equipped with the majority of company trains, including "Belogorie" (Moscow - Belgorod), "Russia" (Moscow-Vladivostok), Moscow-Chita and many others. The converter provides conversion of 87...142 V DC voltage of the car on-board network into AC voltage with adjustable frequency through four separate channels. There are 496 units in operation.

Specifications

Weight

420 kg

Battery charge voltage

125...142 V

Battery charge current

40...70 A

Input Voltage (Battery Charge Channel)

3x380V 50Hz

Rated current (Channel 2, 3)

8 A

Rated current (Channel 1)

39 A

Output power (Channel 2, 3)

Output power (Channel 1)

Frequency control range (Channel 2)

20...50

Frequency control range (Channel 1, 3)

20...70

Number of channel phases (Channel 1, 2, 3)

3 pcs

Rated channel voltage (Channel 1, 2, 3)

220 V

Voltage regulation range (Channel 2)

88...220 V

Voltage regulation range (Channel 1, 3)

88...308 V

Number of channels

Rated channel voltage (Channel 4)

230 V

Input DC voltage (Channel 1, 2, 3, 4)

110 V

Rated channel frequency (Channel 1, 2, 3, 4)

SBVVBG

Number of channel phases (Channel 4)

1 pcs

Output Power (Channel 4)

Rated current (Channel 4)

28 A

Possibility of remote control of frequency of output voltage

Armoured glass

Overall dimensions (DxWxH)

2260x672x730 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
