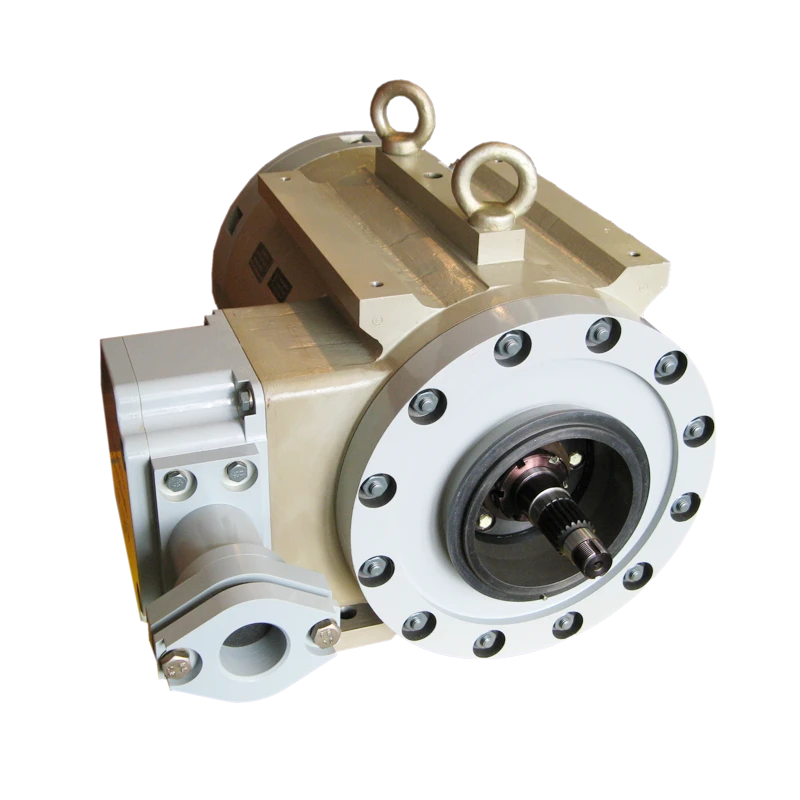

Starter Electric Motor DATV300-120T-9000 for D-30 Engines

Available for Import

Starter Electric Motor DATV300-120T-9000 for Cold Cranking D-30 Engines

High-Power Multi-Phase AC Motors

Manufacturer: ELECTRODRIVE OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The electric motor DATV300-120T-9000 together with the starter control unit BUS-120T as part of the electric starter STVD-25D-9000 is designed for starting and cold cranking of the engine D-30EU-1, D-30EU-2, D-30EU-6 and their modifications as part of driven gas turbine power plants with capacity from 2.5 to 6.0 MW

Specifications

Explosion protection version

1ExdIIAT3

Weight

140 kg

Overall dimensions

460x640x370 mm

Operating temperature

-40...+60 °C

Motor speed

9000

Maximum torque on the shaft

122.5 Nm

Motor power, not more

120 kW

Frequency range of three-phase alternating current supplied to the electric motor

0.1...320

Range of three-phase alternating voltage applied to the electric motor

0.1...380 V
