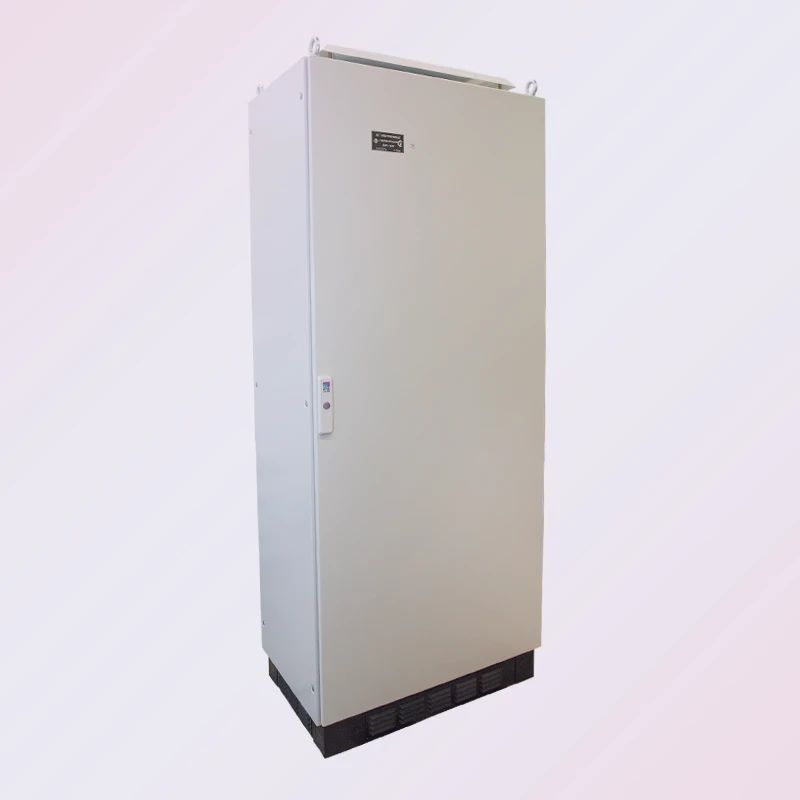

Starter Control Unit BUC-160T for Gas Turbine Applications and Management

High-Voltage Electrical Panels

Manufacturer: ELECTRODRIVE OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Bus-160T starter control unit is designed for control of STVD-30D-11T electric starter during start-up and cold cranking of gas turbine units as part of gas turbine power plants and gas pumping units with PS-90GP-1, PS-90GP-2, PS-90GP-3, PS-90GP-25, PS-90EU-12, PS-90EU-16 engines and their modifications of industrial application with capacity from 10 to 25 MW.

Specifications

Rated supply voltage of three-phase alternating current with frequency 50 Hz

380 V

Power consumed by the electric starter when operating from the mains, not more than

220 kW

Current consumed by the electric motor from the BUS, not more than

345 A

Overall dimensions

2000x800x500 mm

Weight

350 kg

Operating temperature

-5...+50 °C

Mode of operation

repetitive
