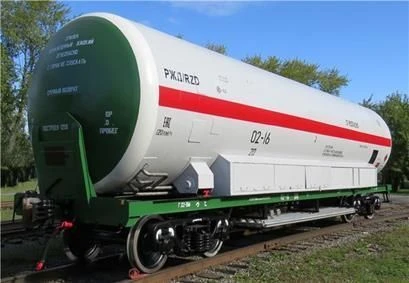

Special Tank Car for LNG and Ethylene 15-5106 for Safe Transport

Tank cars

?????-????????

for spg and ethylene

15-5106

40.45?

- capacity 10000mm; - trolley 1850mm

65.4?3

(at pressure rise from 0.05 mpa to 0.5 mpa) 42 (85)days

during operation (in warm condition), 1.33 (1x10-2) pa (mmHg)

(working) 0.5 (5.1) mpa (kgf/cm2); (test without taking into account vacuum in the heat-insulating cavity) 1.1 (11.22) mpa (kgf/cm2); (test in the presence of vacuum in the heat-insulating cavity) 1.0 (10.2) mpa (kgf/cm2)

- along the coupling axes of couplers 15090mm; - along the frame end beams 13870mm; - capacity 14144mm

-196 to +70°c

120km/h.

23.56t, (31.66t)

(at stationary storage reduced to temperature: t=306k (33os) and p=0.1 mpa (760mmHg)) 0.417 (0.227) % per day

(from wheelset to rails maximum) 230.3 (23.5) kn (tf)

biaxial 18-100, type 2
