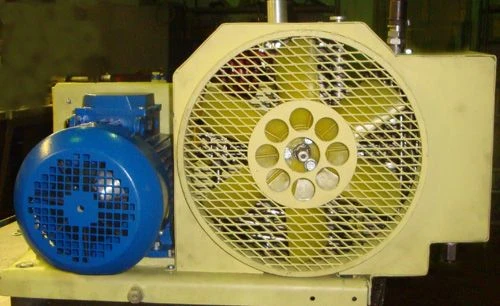

Special Compressor Station for Compressed Air SКAВ5/30

Available for Import

Special Compressor Station SКAВ5/30 for Compressed Air Applications

Piston Compressor Units

Manufacturer: KOMPRESSOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

for obtaining compressed air with pressure 29.4 MPa or 19.6 MPa and filling cylinders of breathing apparatus with air purified from moisture and harmful impurities air 5 nm3/h MJANI.064132.002 TU

Specifications

Voltage

220 V

Type

Special aerial

Service life

10 year

Compressible gas

air

Compressor shaft speed

2220

Degree of protection

ip54

Capacity, nm3/h

Compressor cooling

Air, forced by a fan located on the compressor shaft

Initial pressure

Atmospheric

Assigned full life

4000

Power

3.2 kW

Weight

70 kg

Mark

skav5/30

Final pressure

29.4 MPa

Equipment

-separator, -control panel, -filter (drying and purification unit), -electric motor, -piston compressor.

Overall dimensions

750?450?450mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
