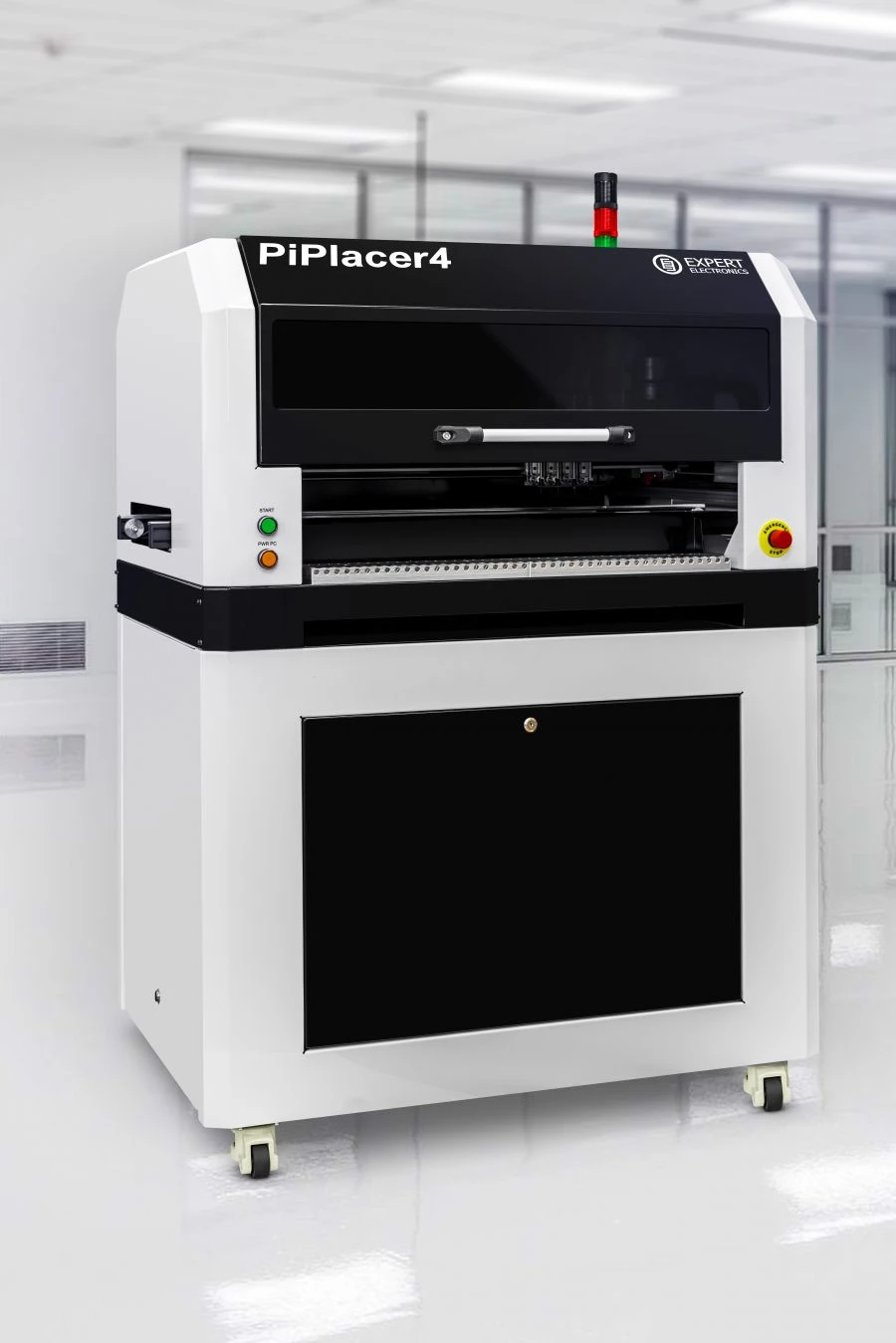

SMD Component Automatic Installer for PCB - PiPlacer4 for Efficient Assembly

Special Purpose Equipment

Manufacturer:EXPERT ELECTRONICS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for mounting various types of SMD-components on the surface of printed circuit boards for pilot, small and medium series production of electronics.

Specifications

Voltage

220...240 V

Weight, not more

195 kg

Service life, at least

5 year

Execution

Stationary

Minimum component size

Size 0201

Function for overpressurising the nozzle

Got it

Vacuum (component pickup) control

Got it

Interfaces

USB 2.0 (3 ports); HDMI (1 port);Gigabit Ethernet (1 port); SMEMA (1 port).

Vibratory feeder for pencils

Number of cases of different widths - up to 18 pcs.

Working with component placings

Armoured glass

Working with ribbon scraps

44 mm

Matrix trays

JEDEC 5.35 "x12.44" (136x316 mm) ¼ size trays (up to 4 pcs.)

Belt auto feeders

44 mm

Type of auto feeders

pneumatic

Maximum component height

B1/B8 2100/900 MHz mm

Maximum component size

40x40 mm

Maximum width of the board

235 mm

Minimum width of the board

SBVVBG mm

Maximum board thickness

4.7 mm

Minimum board thickness

0.3 mm

Single zone pipeline with SMEMA support

955...965 mm

Performance

4000 components per hour with recognition

Angular accuracy of installation

0.15 °C

Number of machine vision cameras

6 pcs

Independent mounting heads with programmable mounting height

4 pcs

Software

Own, under Linux OS

Required compressed air pressure

0.6...0.8 MPa

Pneumatic power supply, consumption.

60 nl/min

Dimensions (DxWxH), mm

1120x770x1580

Instrument power supply type

??????????????

Operating temperature

18...25 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
