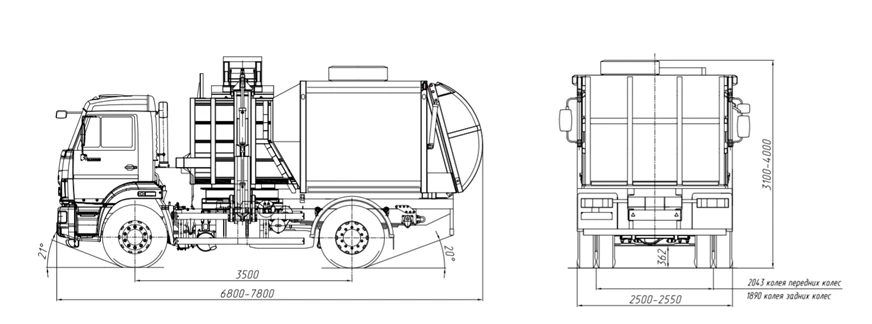

Side Loading Garbage Truck KMB-7028-06 on KAMAZ 43255 Chassis - G5 Model

Brand: KOMMAШ

$60,000 - $180,000 USD

MOQ: 1 pieces

Key Features

Technically permissible maximum mass of the vehicle: 15500 m² living area

Vehicle length: 6800...7800 mm

Base: 3500 mm

Fuel: diesel fuel

Supplier Information

KOMMACH LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

body of rubbish truck with side loading device for collection of municipal solid waste (MSW) from containers, as well as manual collection of MSW, its compaction, transportation and mechanised unloading in places of neutralisation and disposal

Specifications

Technically permissible maximum mass of the vehicle

15500 m² living area

Vehicle length

6800...7800 mm

Base

3500 mm

Fuel

diesel fuel

Type of garbage truck equipment

garbage truck body with side loading device

MSW compression ratio for the garbage truck

Up to 10

Base chassis type

KAMAZ 43255

Vehicle equipment

maximum speed limiter (the function of the maximum speed limiter is performed by the electronic engine control unit), emergency call device with automatic activation in case of rollover on request:

Hopper capacity

10...16 ha

Wheel arrangement

4x2/rear

Machine type

7028?2

Engine type

Four-stroke diesel engine

Brake systems auxiliary

retarder

Parking brake systems

drive from spring energy accumulators to rear axle wheel brakes

Brake systems spare

each service brake system circuit

Brake systems working

pneumatic double-circuit drive with division into circuits on the front axle and rear axle, with ABS; brakes of all wheels - drum brakes

Steering mechanism (type)

"screw - ball nut - rail - sector"

Steering (description)

Power assisted

Rear suspension (description)

dependent, leaf spring, with hydraulic telescopic shock absorbers, with transverse stability stabilizer (for 43253-G5, 43255-G5, 53605-??)

Front suspension (description)

dependent, leaf spring, with hydraulic telescopic shock absorbers with transverse stability stabilizer (for 53605-???) or without it (for 43253-G5, 43255-G5)

Transmission (make, type)

ZF, 6S1000TO, with manual control

Clutch (brand, type)

ZF&SACHS or DONMEZ or Changchun Yidong Clutch, MF 395, MFZ-430, dry, single plate

Transmission

mechanical

Silencers (marking) - 1 stage

Cummins, 4378042 (A051E058) - for 4325?-G5, 53605-A5 Cummins, 4378057 (A051K628) - for 4325?-G5, 53605-A5 Cummins, 5418406 (A059K501) or 5418404 (A059K499) - for 53605-5H

Neutralizers (marking) - 1 stage

integrated with the silencer

Exhaust gas exhaust and neutralization system

one silencer; exhaust gas neutralization system

Air filter (type, marking)

PV728.1109510 or 45,700 92,941 (for 43253-G5, 43255-G5); PV725.1109510 (for 53605-A5, 53605-5H); AH193344V or Fleetguard OptiAir1100 series (711091N)

Air blower (type, marking)

Holset, HE351W

Nozzles (type, marking)

CRIN2, 0 445 120 329

Fuel injector (type, marking)

CR/CP3S3/L110
