Short Circuit Indicator IKZ-V (Model IKZ-V53L-U3)

Available for Import

Short Circuit Indicator IKZ-V for Localizing Faults in 6-35 kV Networks

Electrical Measurement Instruments

Manufacturer: ANTRAKS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

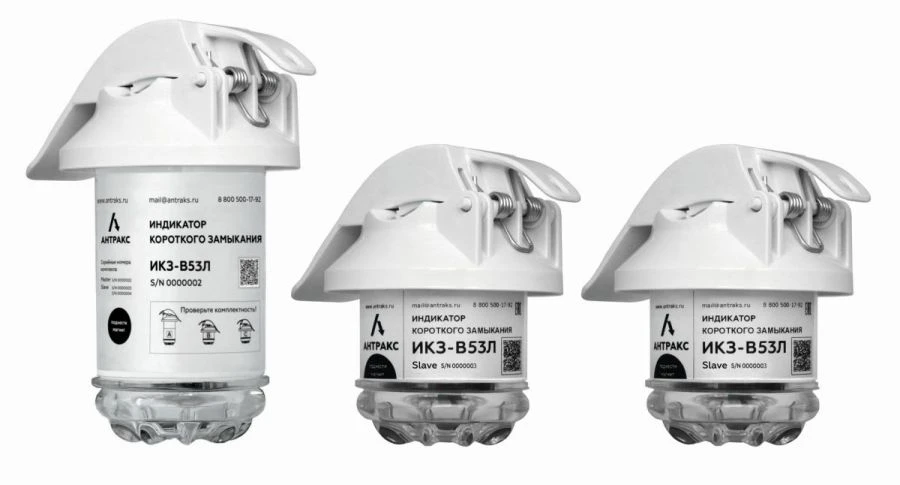

Indicators of short-circuit are designed for localisation of the damaged area on overhead lines of power distribution networks with voltage 6-35 kV, network frequency 50 Hz and 60 Hz, with any type of neutral (blind-earthed, resistive, compensated isolated) with one-sided power supply, ring lines with two-sided power supply. The set consists of three indicators: IKZ-V53L-Master (1 pc.) and IKZ-V53L-S (Slave 2 pcs.), controls and continuously monitors the current and voltage in each phase wire of the overhead line, provides joint data processing, and data transfer to the data acquisition server. The IKZ-V53L-U3 detects short circuits from 20 A, short-circuit faults from 2 A.

IKZ-V53L do not require a separate unit for data transmission via GSM-network, SMS notification of accidents with GPS coordinates can be organised. All indicators of the set are equipped with radio channels of BLE standard, IKZ-B53L-Master is equipped with GSM-channel of data transmission. IP 68.

Specifications

Voltage class of overhead lines

6...35 kV

Network frequency

SBVVBG

Short-circuit current sensitivity

20 A

Sensitivity to short-circuit current

2 A

Visibility of the visual indication during daylight hours

100 m

Visibility of visual indication at night time

500 m

Absolute current trip threshold

20...1000 A

Differential current trip threshold in %

50...500 %

Blanking of inrush currents

0...200

Wire diameter

5...40 mm

Number of removable lithium batteries (19Ah) in ICZ-B53L-U Master

3 pcs

Number of removable lithium batteries (19Ah) in CPI-V53L-U Slave

1 pcs

Differential current threshold in A

20...500 A

Time to analyze the alarm process

0.5...200

Battery life in standby mode

7 year

Local communication: Bluetooth short-range radio link

2.4

Temperature range standard

-40 to +70 °C

Temperature range extended

-60 to +85 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
