Short-Circuit Indicator IKZ-V Model IKZ-V51L-U3 for Electrical Networks

Electrical Measurement Instruments

Manufacturer: ANTRAKS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

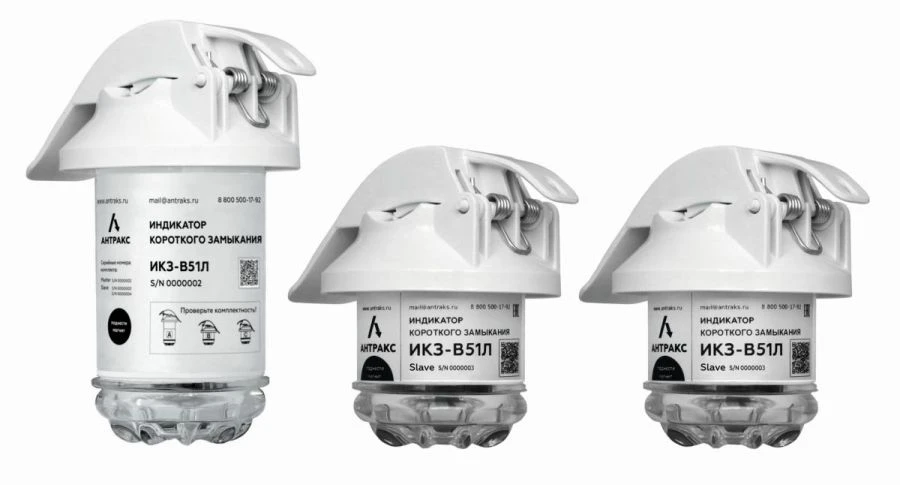

Indicators of short-circuit are designed for localisation of the damaged area on overhead lines of power distribution networks with voltage 6-35 kV, network frequency 50 Hz/ 60 Hz, with any type of neutral (blind-earthed, resistive, compensated isolated) with one-sided power supply, ring lines with two-sided power supply. The set consists of three indicators: IKZ-V51L-Master (1 pc.) and IKZ-V51L-S (Slave 2 pcs.), controls and performs continuous monitoring of current and voltage in each phase wire of the overhead line, provides joint data processing and data transmission to the data acquisition server. The IKZ-V51L-U3 detects short circuits from 25 A.

IKZ-V51L do not require a separate unit for data transmission via GSM-network. All indicators of the set are equipped with radio channels of BLE standard, IKZ-V51L-Master is equipped with GSM data transmission channel. With the help of IKZ-V51L-Master can be organised SMS notification of accidents with indication of GPS coordinates.

IP 68.

Specifications

Voltage class of overhead lines

6...35 kV

Network frequency

Wire diameter

5...40 mm

Short-circuit current sensitivity

25 A

Local communication: Bluetooth short-range radio link

2.4

Absolute current trip threshold

20...1000 A

Differential current trip threshold in %

50...500 %

Blanking of inrush currents

0...200

Number of removable lithium batteries (19Ah) in ICZ-B51L-U Master

3 pcs

Number of removable lithium batteries (19Ah) in ICZ-V51L-U Slave

1 pcs

Differential current threshold in A

20...500 A

Time to analyze the alarm process

1...200

Battery life in standby mode

7 year

Temperature range standard

-40 to +70 °C

Temperature range extended

-60 to +85 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
