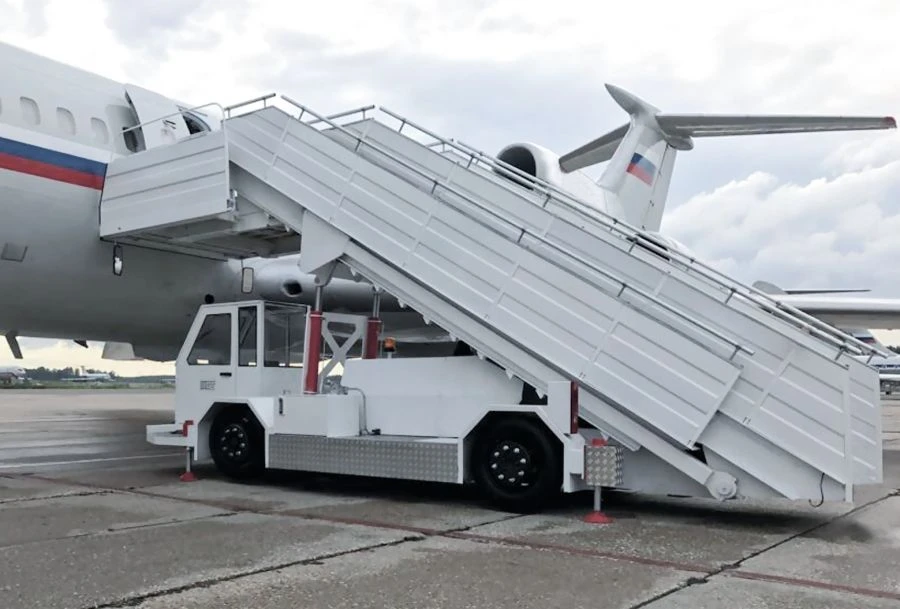

Self-Propelled Airport Stairs ATрС-01Available for Import

Self-Propelled Airport Stairs ATрС-01 for Easy Aircraft Access

Special Purpose Equipment
Manufacturer:ZST OJSC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The ATrS-01 Gangway is designed to service all types of civil and military aircraft (AF), including but not limited to: A-310, A-319, A-320-100 (200), Tu-154, B-737-800 (700; 400), B-757. Provides safe passenger entry into and exit from the aircraft cabin at a height of 2.2 to 5.8 metres above the ground

Specifications

Service life, at least
10 year
Weight, not more
8500 kg
Dimensions (DxWxH), mm
8050x2500x3500
??????????????
24 V
Minimum service height
2200 mm
Maximum service height
5800 mm
Turning radius
10 m
Maximum travel speed
30
Drive
Hydraulic, from running engine of special chassis, on rear axle
Engine type
Diesel
Chassis type
Special chassis of own manufacture

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
