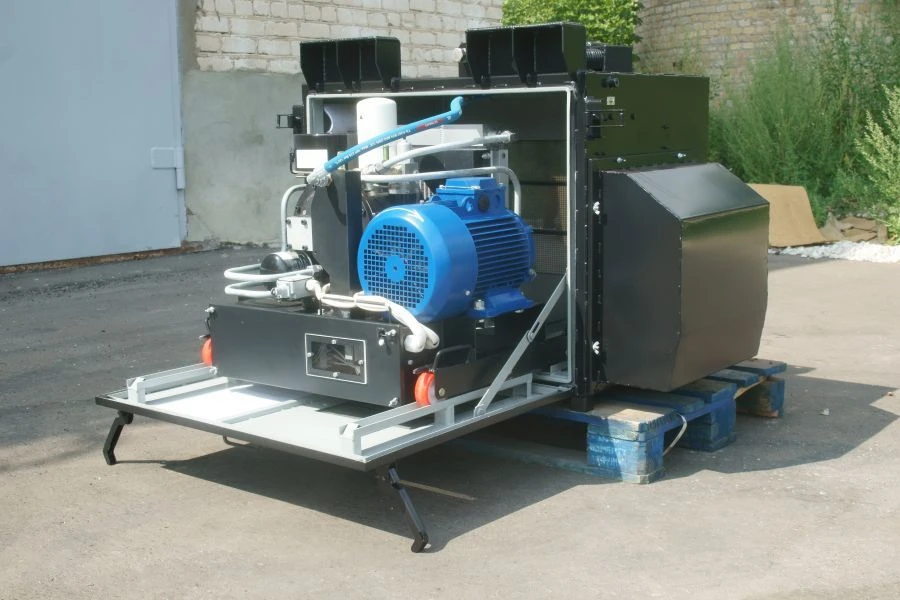

Screw Compressor Installation for Electric Trains VCU-0.6-EP-01 for Pneumatic Systems

The screw compressor unit for electric trains VKU-0,6-EP-01 TEK.71.000-02 is designed to supply compressed air to the pneumatic system of electric trains. It is allowed to use at other objects, where the operating conditions correspond to the conditions specified in the technical conditions of TU 318431-002-58583495-2004.Main characteristics:1. Capacity of ACU, m3/min 0,626%.2.

Rated final overpressure in the discharge line of ACU, MPa, not less than -0,8.3. Type of drive transmission of ACU compressor - belt.4. Nominal three-phase voltage of ACU supply 220 V, 50 Hz5.

Air purification and drying unit (APDU) is available6. Weight of the air-conditioning unit, kg, not more than 270.
