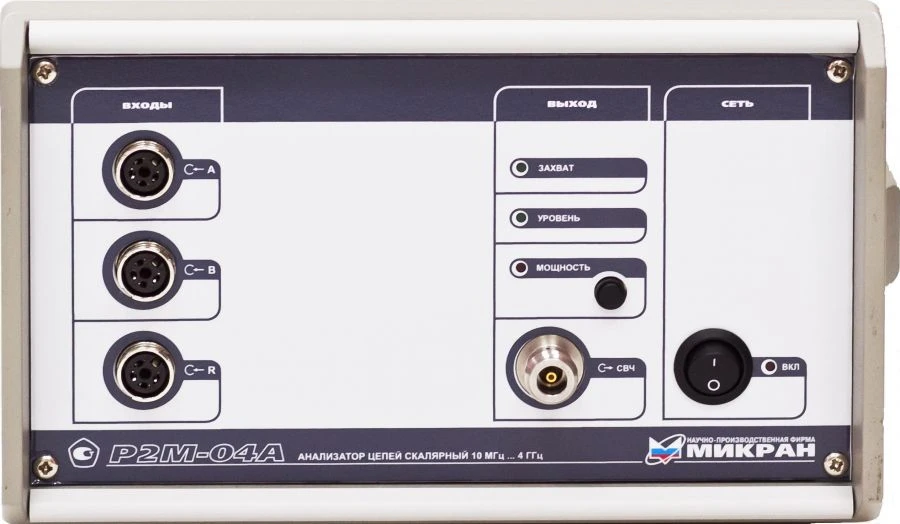

Scalar Circuit Analyzer P2M-04A/4 for Measuring Signal Parameters

Analyser of circuits scalar R2M-04A/4 is intended for measurements of modulus of transmission coefficient, modulus of reflection coefficient, coefficient of standing wave on voltage, power and for formation of continuous harmonic signals. Additional operating modes of the R2M analyser allow to control dynamic characteristics, group delay time, parameters of devices with frequency conversion and parameters of devices in pulse mode. The field of application of P2M analysers is research, adjustment, testing, control in the production of RF and microwave devices used in radio electronics, communications, radar, measuring equipment
