Rubber Mats for Railway Crossings with R65 Rails

Rubber Mats for Railway Crossings with R65 Rails

Brand: AVANGARD

$900 - $3,600 USD

MOQ: 2 sets

Supplier Information

AVANGARD OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from AVANGARD

Fiberglass Drainage Channels for Road Construction

$30-$180

Chemical-Resistant Fiberglass Transport Tanks for Safe Liquid Storage

$3,000-$24,000

Fiberglass Pipe for Industrial Smoke and Gas Ventilation Systems

$90-$600

Description

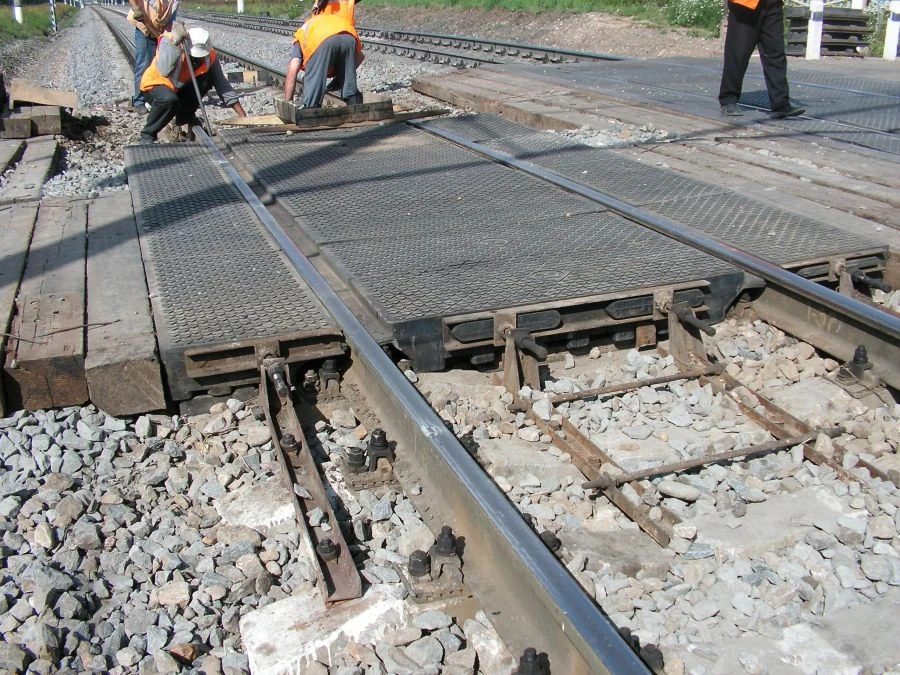

The decking is used for arrangement of railway crossings with R-65 rails (fastening KB and ARS-4) on reinforced concrete sleepers in places where roads and railways cross.
The decking is a modular construction allowing normal (without fitting) assembly on straight and curved (R'1200v) sections of railway roads with an epub of 1840 sleepers/km. The approach of the motorway in the longitudinal profile should not exceed 30% at a distance of 50m from the end rail. The width of the motorway should be not less than 6m, on motorways of all categories, in accordance with the Road Traffic Rules. It is possible to install crossings of any width with a spacing of 0.54m.
The products comply with the requirements of the Rules of technical operation of the Russian Federation railways, Instructions for operation of railway crossings of JSC "Russian Railways", Road Traffic Rules, as well as SNiP 2.05.02-85. The decks operate in the range of operating temperatures: -40 degrees ... +60 degrees Celsius. Maximum permissible load from wheels of motor transport: not more than 4 ....
