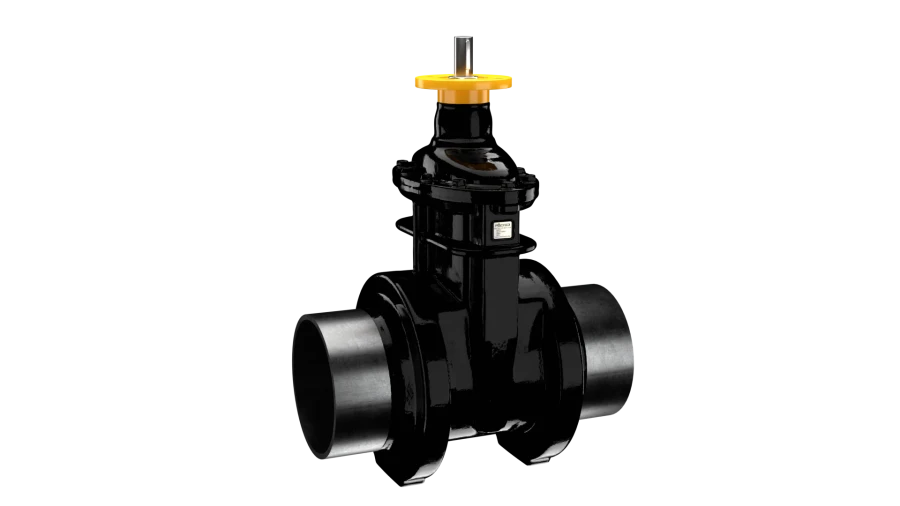

Rubber-clad Wedge Valve for Gas Supply 31вч24р1 Available for Import

Rubber-clad Wedge Valve for Gas Supply 31вч24р1 - Reliable Flow Control

Gate Valves
Manufacturer: RSG GROUP LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Rubberised wedge gate valve for gas supply 31vch24r1 with reinforced type coating, with steel spigots, nominal pressure Rubberised wedge gate valve for gas supply 31vch24r1 with reinforced type coating, with steel spigots, nominal pressure Rubberised wedge gate valve for gas supply 31vch24r1 with reinforced type coating, with steel spigots, nominal pressure Rubberised wedge gate valve for gas supply 31vch24r1 with reinforced type coating, with steel spigots, nominal pressure Rubberised wedge gate valve for gas supply 31vch24r1 with reinforced type coating, with steel spigots, nominal pressure

Description

Gate valve with rubberised wedge ROSGAZ (ZOK "ROSGAZ"), designed to shut off the flow of natural gas transported through gas distribution networks and gas consumption.Body -VChSHG (VCh-40). Cover: HSSG (HCH-40).Wedge: HSSG, vulcanised with butadiene nitrile rubber.Cover screws: stainless steel.Polyethylene spigots: PE100 SDR11.Spindle: stainless steel.Spindle nut: brass.Spindle sealing design - 5 o-rings form a labyrinth sealing system of the spindle. Sealing of movable and fixed connections of the gate valve - O-rings, profile gaskets Connection to the pipeline - polyethylene spigots Sealing class "A".

Specifications

Spindle type
Non-retractable
Material of construction of the locking mechanism
Cast iron
Gate valve type
Wedge
Hull molding type
Combined
Type of sealing of moving parts against the external environment
Glands
Type of connection to the pipeline
Welded
Type of seal in the gate
Elastic seal
Nominal pressure (PN), MPa (kgf/cm)
1,6 (16,0)
Nominal diameter (DN)
SBVVBG mm
Type of product according to PP RF 616
Shut-off valves for process control (gate valves, cocks, stop valves, disk gates and other fittings)
Type of execution
Prepared for installation of a non-freezing stem

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
