Round Power Cables with Plastic Insulation up to 1 kV APvVG(A)

Available for Import

Round Power Cables with Plastic Insulation up to 1 kV for Versatile Applications

Aluminium Power Cables 1kV

Manufacturer: GOSTKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

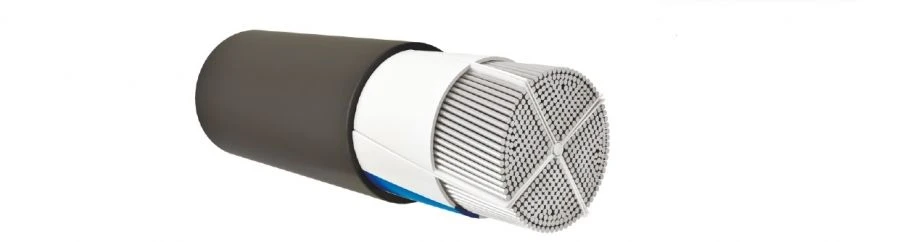

Cable round with aluminium cores, with insulation made of cross-linked polyethylene and outer jacket made of PVC plasticate. The cable is designed for use on land, rivers and lakes at an altitude of up to 4 300 m above sea level. It is used at moderate and cold temperatures. It is used in the air in the absence of danger of mechanical damage during operation; for laying in dry or damp rooms (tunnels), channels, cable half floors; in mines, collectors, production facilities, partially flooded structures in the presence of medium with weak, medium and high corrosivity; for laying on special cable racks, on bridges and in blocks.

Specifications

Mark

APvVVG(A)

Core material

Aluminum

Insulation material

Cross-linked polyethylene with distinctive coloring

Sheath material

polyvinyl chloride plasticate

Calculated weight

1 kg

Number of cores

1,2,3,4,5 pcs

Core cross section

70, 95, 120, 150, 185, 240 mm²

Nominal voltage

up to 1 kV

Nominal cross section of phase conductors

70, 95, 120, 150, 185, 240 mm²

Number of phase conductors

1,2,3,4,5 pcs

Laying and installation of cables without preheating is carried out at temperature

at least -15 °C

Long-term permissible core heating temperature during operation

No more than 70 °C

Short circuit duration

No more than 5

Permissible heating temperature of cable cores in overload mode

Not more than 90 °C

Limit temperature of core heating under conditions of short circuit non-flammability

no more than 350 °C

Test alternating voltage with frequency 50 Hz at 0.66 kV

3 kV

Test AC voltage of 50 Hz frequency at 1 kV

3,5 kV

Maximum AC voltage of frequency 50Hz at 0.66 kV

0,72 kV

Maximum AC voltage of frequency 50Hz at 1 kV

1,2 kV

Filler material

polyvinylchloride plasticates

Insulation material of phase conductors

Cross-linked polyethylene with distinctive coloring

Climatized version

-50...50

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
