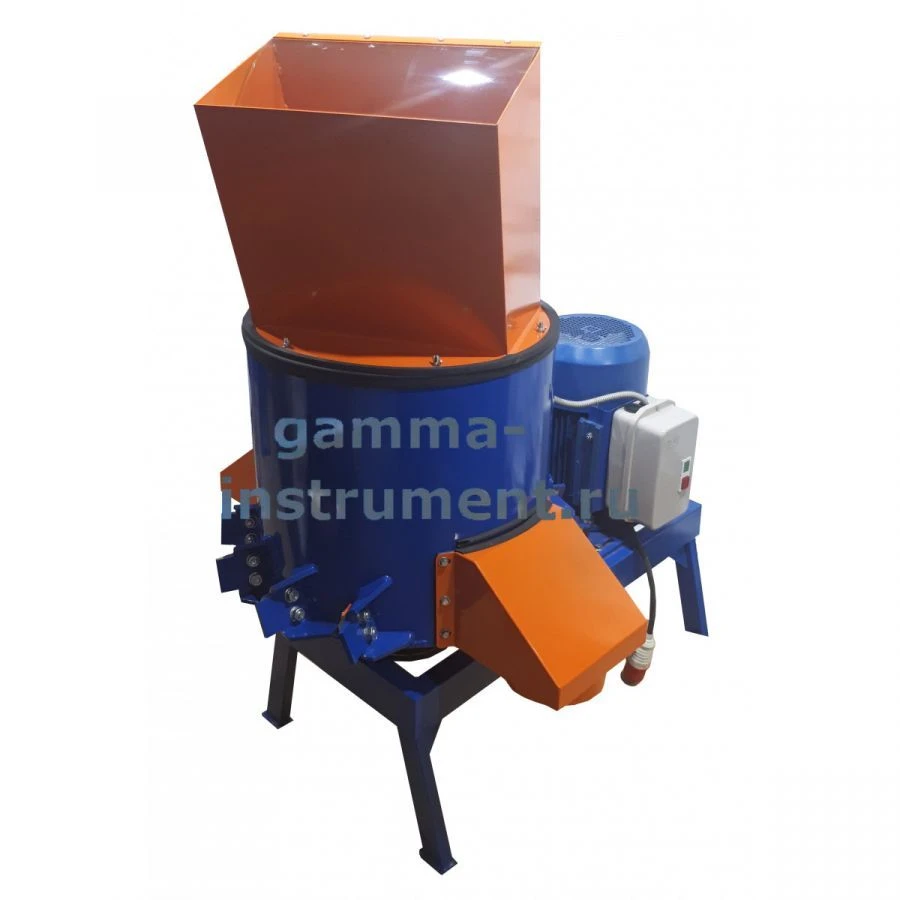

Available for ImportRotary Mechanical Crusher MI 700-380-12-UHL4 for Efficient Material Size Reduction
Manufacturer:GAMMA-INSTRUMENT LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Rotor mechanical shredders (crushers), model series MI, MIG - crushing equipment for primary and subsequent size reduction of a wide range of materials (plastic products with a wall thickness not more than 4 mm, foam, foam rubber, foam rubber, syntepon, expanded polystyrene, polymer films, polypropylene bags and waste). The crushers are equipped with high-speed rotating knives, effectively crushing the material to flakes and shavings. They are intended for crushing of materials, production waste (for the purpose of reuse of raw materials - recycling), at small and medium-sized enterprises, as well as for use in various sectors of national economy and exports.
Specifications
Voltage
380 V
Weight, not more
360 kg
Service life, at least
5 year
Drive type
Belt
Rotor dimensions
570 mm
Receiving opening dimensions (L x W), mm
500x300
Working chamber diameter
630 mm
Number of knives, rotary/stationary, pcs.
2/6
Crusher capacity, kg/h
up to 200
Size of maximum piece of material to be loaded, mm
For plastic products, the wall thickness must not exceed 4 mm
Output fraction size
6...40 mm
Nominal rotor speed
1500
Circumferential speed of rotating rotor blades
45
Adjustable width of exit slits
0.5...5 mm
Installed power nominal
15 kW
Overall dimensions (L x W x H), mm
1300x800x1700
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
