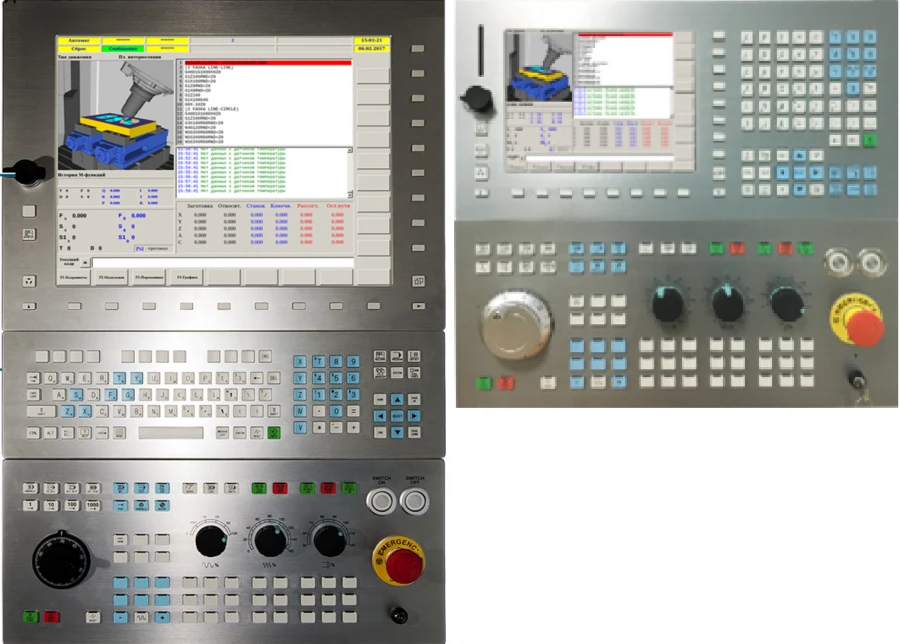

Resource-31 CNC Controller for Metalworking Machines Available for Import

Resource-31 CNC Controller for Efficient Management of Metalworking Machines

Metalworking Machine Parts
Manufacturer: ENSI LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Purpose: For controlling the actuators of metalworking machines of various technological groups - turning, milling, grinding, electric discharge and others. Can be used to control industrial robots and other automated systems

Description: At the heart of the motion and logic controller of the multi-processor CNC "Resurs-31" are the latest Russian dual-core processors "Baikal-T1" with MIPS architecture. Number of simultaneously controlled axes: 6 coordinates + spindle + tool mechanism; Design variants: 6, 12 and 18 bays for interface modules; Power: 300 W or 400 W; Touch screen operator interface Software supporting continuous 5-axis machining, digital data exchange, 3D visualisation. Has the functionality to control via digital protocol actuator sets: FANUC, YASKAWA, OMRON.

Technological capabilities of the software: -Turning functions (current cycles...

Specifications

CPU
Baikal-T1
Drive Interface
digital and analogue
Memory
80
Maximum number of axes and spindles
8 pcs
Continuous 5-axis machining package
Got it
Power
300 W
Algorithms for high-speed processing of data arrays
Got it
Algorithms for calculating the trajectory of moving control objects
Got it
Open real-time OS
Got it
Support for CIA profiles 401 and 402
Got it
Support for IEC 60870-5-104
Got it
Number of remote input/output stations.
31 pcs
Number of remote analogue inputs/outputs
500 pcs
Interfaces
x2 USB, x1 EtherCAT, x3 RS-485, x2 Ethernet
Degree of protection
IP 65
Supported interfaces
x2 USB, x1 EtherCAT, x3 RS-485, x2 Ethernet

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
