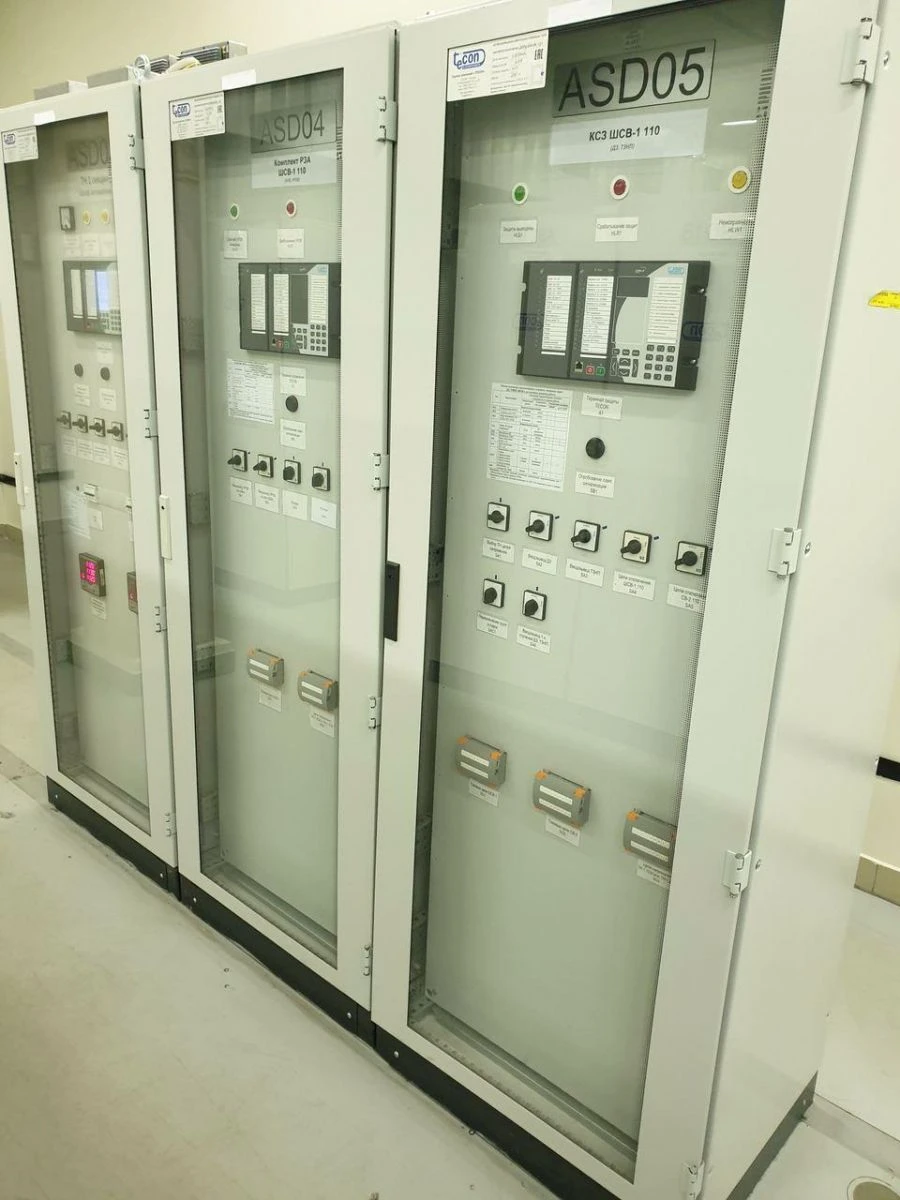

Relay Protection and Automation Cabinets TEKON Type SHE for Electrical Equipment Safety

Low-Voltage Electrical Panels

Manufacturer: MODULE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

TEKON Type SHE Relay Protection and Automation Cabinets provide mission-critical protection for power stations, substations, and high-capacity distribution networks. Built to IEC 61850 and IEEE C37.90 standards, these precision-engineered systems safeguard against abnormal operating conditions, ensuring grid stability and regulatory compliance across utility-scale facilities.

Designed for demanding industrial environments, the SHE cabinet features robust materials, modular installation architecture, and advanced safety interlocks suitable for critical infrastructure including hospitals, data centers, and commercial power distribution hubs. Comprehensive protection minimizes unplanned downtime and operational risk.

Specifications

Type

TECON SHE relay protection and automation cabinet

Climatic version

belong to products of placement category 1 and 3.1 of climatic execution UHL according to GOST 15150-69 for outdoor and indoor installation respectively

Temperature class

lower operating value of ambient air temperature at outdoor installation - minus 60 °? with air conditioning and ventilation system installation and minus 25 °? without air conditioning and ventilation system installation.

Degree of protection

for the cabinet - IP54, for terminal blocks and switches on the cabinet door - IP00

Housing material

made in the form of a metal frame made of a specialized profile with collapsible side walls, roof, with or without plinth, front and rear doors

Material of manufacture

The front door can be made of solid metal, metal with a viewing window or solid glass.

Color

RAL 7035

Explosion protection

Height

800...2000 mm

Width

600...1200 mm

Type of explosion protection

Modules

Material

Metal case

Current capacity

Rated current I_n of the NCU circuit, 1 or 5A

Size; mm

800-2000/600-1200/400-800 mm

Mark

TECON

Equipment

May include TEKON 300 series relay protection and automation devices and other types of hardware and software, complete according to the project for a particular facility

Assignment

Designed for protection of technological equipment of power stations, substations, distribution networks and switchgears from abnormal and emergency modes of operation.

Length

800...2000 mm

Degree of protection against external influences

with regard to the impact of mechanical VVF shall meet the requirements of mechanical performance group M40 according to GOST 30631-99. In this case the nominal values of mechanical WWF: vibration with frequency from 10 to 100 Hz with acceleration 0,25 g

By explosion protection

Frequency

SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
