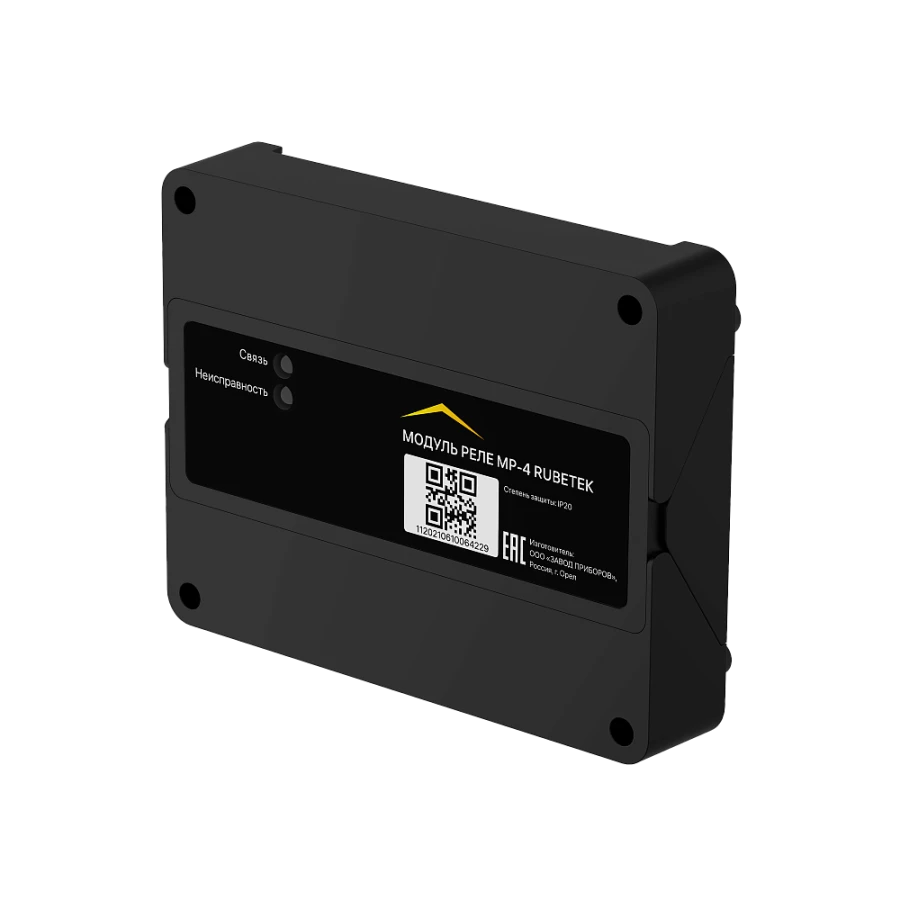

Relay Module MR-4 "RUBETEK" for Fire Alarm Systems

Available for Import

Relay Module MR-4 "RUBETEK" for Fire Alarm Control Systems

Fire Alarm Detectors

Manufacturer: RUBETEK RUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The relay module MR-4 "RUBETEK" (hereinafter referred to as the module) is designed for connection to the fire addressable analogue fire control and monitoring device PPK-02-250 "RUBETEK" (hereinafter referred to as PPK) or to the system controller KS-02-250 "RUBETEK" (hereinafter referred to as KS) of smoke exhaust fan control cabinets SHU-DU and other equipment controlled by means of dry contact (hereinafter referred to as SC). The module is designed for indoor installation in places protected from atmospheric precipitation, aggressive media and dust, as well as in especially explosion- and fire-hazardous premises.

Specifications

Probability of failure-free operation in 1000 h

0.98

Average MTBF

60000

Average service life

10 year

Weight, not more

0.21 kg

Dimensions (L x W x H), mm

160x125x36

Degree of enclosure protection

IP20

Operating temperature range

-10...55 °C

Tamper switch (tamper switch)

Got it

Light indication

Got it

Number of SC outputs

4 pcs

Constant voltage (DC)

30 V

AC voltage (AC)

250 V

At 30 V

2 A

At 250 V

0.3 A

Maximum current consumption

0.028 A

Average current consumption in standby mode

0.0002 A

Nutrition

From PLC

Number of address slots occupied

1 pcs

Communication channel to the CCP or CW

PLS.

Built-in short-circuit isolator

Got it

Number of devices connected to one PLC, max.

SBVVBG pcs

Cross-section of wires for connection

0.2...2 mm²

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
