Reinforced Wall-Mounted Distribution Cabinet 7U - SHRN-7U-566-BL

Available for Import

Reinforced Wall-Mounted Distribution Cabinet 7U for Telecommunications Applications

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

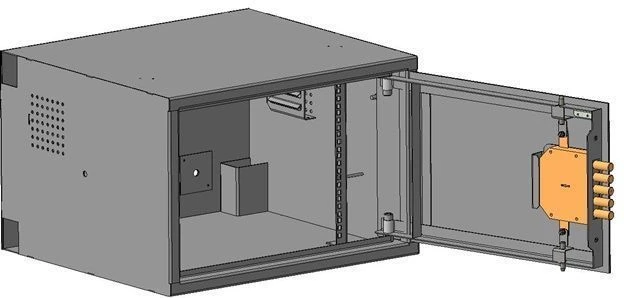

ShRNU-7U-566-BL. Wall-mounted distribution cabinet reinforced, size 19" - 7U, overall dimensions ????????= 627?410?566. The product SHRNu-7U-566 is a wall-mounted vandal-proof telecommunication cabinet designed to accommodate active telecommunication equipment or in-house technical means of security systems, control and management of engineering equipment and resource consumption metering.

The product is located in entrances of houses, other unguarded technical and non-residential premises of small area. Overall dimensions of the product, mm 627410566. The product SHRNu-7U-566 is made of 2 mm thick steel in vandal-proof version as a one-piece welded construction and painted with light grey powder paint (RAL 7035).

The door is made of 5 mm thick steel. Inside the enclosure there are 19" rails for mounting equipment.

Specifications

Type of accommodation

indoor hinged

Height, U

Operating temperature range

0...40 °C

Device type

Reinforced wall-mounted distribution cabinet

Form factor (rack-mounted, freestanding)

freestanding

Depth

566 mm

Protection class

IP31

Weight

25 kg

Height

410 mm

Width

627 mm

Availability of fasteners to the support (pole)

Armoured glass

Type of accommodation

In the room for surface mounting

Type of construction

All-welded

Height , U

Usable depth

566 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

2 mm

Upper limit of operating temperature

40 °C

Door thickness

5 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
