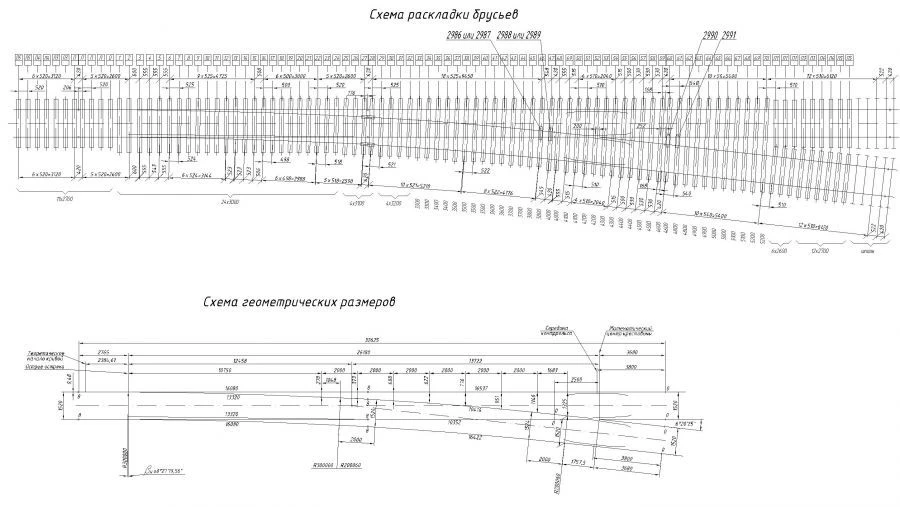

R65 Type Switch Mark 1/9 for Concrete Sleepers - Project 2796.00.000/-01 Available for Import

R65 Type Switch Mark 1/9 for Efficient Rail Track Switching

Wide Gauge Track Switches
Manufacturer: MSZ OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The R65 type track switch of mark 1/9 on reinforced concrete bars is designed for transferring rolling stock from one track to another on the main tracks of railway lines with mixed freight-passenger train traffic. Flexible shackles with welded rails are used in the arrow. The crossbar is of prefabricated welded construction - rail ends are welded to the core made of high-manganese steel.

The counter rail is not connected with the track rail. The P65 type R65 type 1/9 type railway crossing, project 2796.00.000/-01, is manufactured in the following versions: 2796.00.000 - right-handed; 2796.00.000-01 - left.

Specifications

Rail type
?65
Cross brand
1/9
Arrow design
With flexible sharps
Type of single transfer
Ordinary
View
Single
Cross type by angle
Spicy
Type of product according to PP RF 616
Track equipment and devices and their parts
View in the direction of a side or crossing track
Left, right
Cross type by construction
Team
Type of timber
Reinforced concrete
Type
?65

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
