R65 Type Switch Lever for Concrete Beams Project 2769.00.000-01

Available for Import

R65 Type Switch Lever for Efficient Track Switching on Concrete Beams

Wide Gauge Track Switches

Manufacturer: NSZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

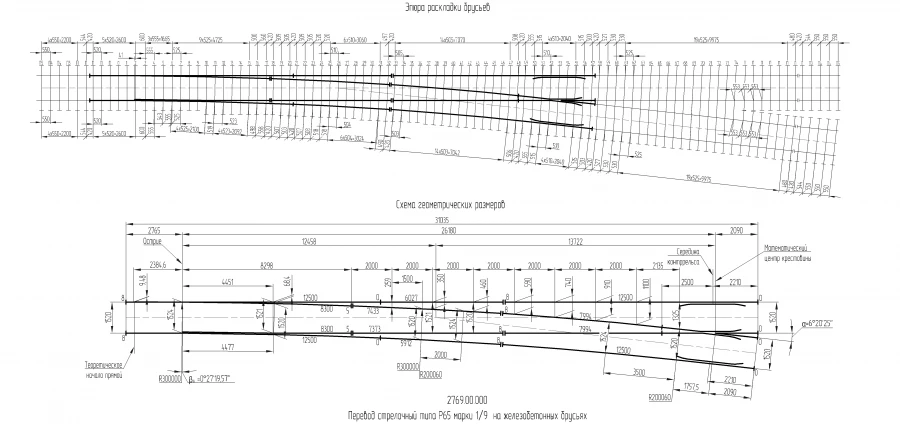

P65 type 1/9 arrow crossing on reinforced concrete bars of the project 2769.00.000.000

Description

Designed for the transfer of rolling stock from one track to another. Design features: transfer: separate fastening, elastic bar terminals Skl or terminals of PC type; pads with flanges; on embedded bolts; arrows: rotary shackles with liner-overlay fastening of the root; welded pads with cushions; elastic P-shaped spring terminals; crossbars: prefabricated with rail whiskers and moulded core of high manganese steel with liner-and-lap end of rear outreach; counter-rail of SP850 corner

Specifications

Cross type by angle

Spicy

View

Single

Type of single transfer

Ordinary

Arrow design

With rotating sharps

Cross brand

1/9

Rail type

?65

View in the direction of a side or crossing track

Left

Cross type by construction

Team

Type of product according to PP RF 616

Track equipment and devices and their parts

Type of timber

Reinforced concrete
