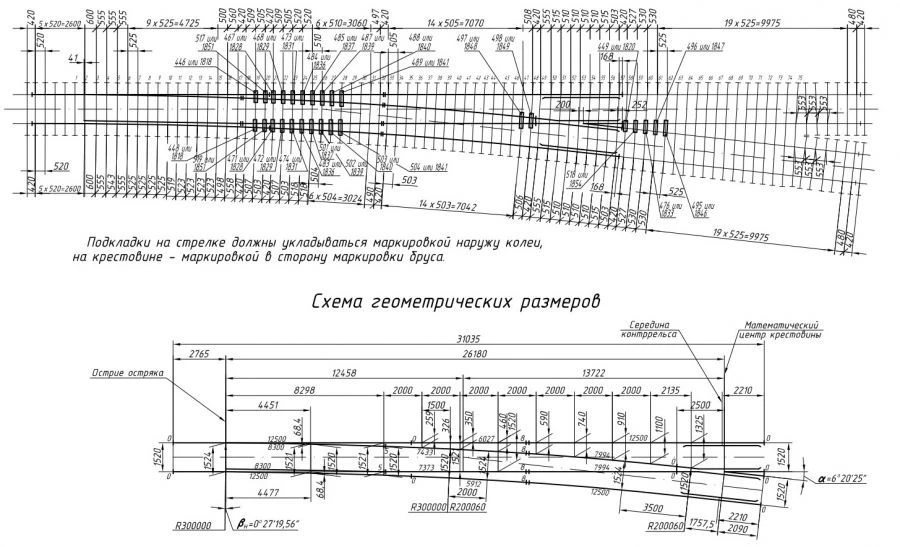

R65 Type Switch for Rail Transfer 1/9 (Project 2215.00.000-16/17)

Available for Import

R65 Type Switch for Rail Transfer - Efficiently Redirect Rolling Stock

Wide Gauge Track Switches

Manufacturer: MSZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for transfer of rolling stock from one track to another. The cross member is prefabricated - the cast core is connected with rail whiskers. The shackles and frame rails are hardened by HFI.

The R65 type R65 grade 1/9 switches of project 2215.00.000-16/17 are manufactured in the following versions: 2215.00.000-16 - right-handed; 2215.00.000-17 - left.

Specifications

Rail type

?65

View in the direction of a side or crossing track

Left, right

Cross type by construction

Team

View

Single

Cross brand

1/9

Arrow design

With rotating sharps

Type of single transfer

Ordinary

Cross type by angle

Spicy

Type of product according to PP RF 616

Track equipment and devices and their parts

Type of timber

Reinforced concrete

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
