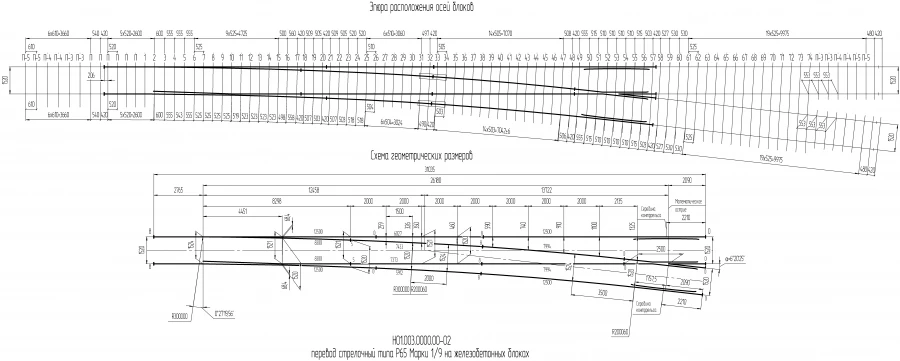

R65 Type Switch for Concrete Blocks - Perfect for High-Speed Rail Applications
Manufacturer:
NSZ OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Applied on the main tracks of underground railway lines with the speed of passenger trains on the straight track up to 100 km/hour, on the side track up to 40 km/hour. Design features: transfers: separate fastening; elastic bar terminals Skl; pads with flanges; made on a rigid (ballastless) base; switches:swivelling sharps with liner-and-lap root attachment; elastic U-shaped spring terminals; welded pads with cushions; crosses: prefabricated with rail whiskers and cast core of high-manganese steel with liner-and-lap end of rear outreach; counter-rail made of SP850 corner
Specifications
Cross type by angle
Spicy
View
Single
Type of single transfer
Ordinary
Arrow design
With rotating sharps
Cross brand
1/9
Rail type
?65
View in the direction of a side or crossing track
Left
Cross type by construction
Team
Type of product according to PP RF 616
Track equipment and devices and their parts
Type of timber
Reinforced concrete
