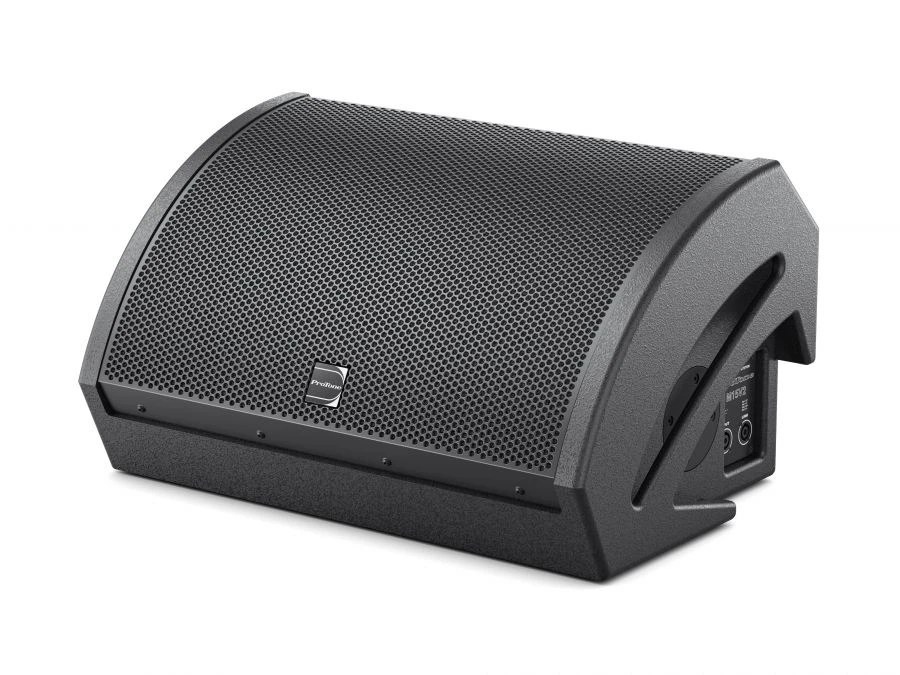

ProTone M15V2 Passive Acoustic System (Stage Monitor)

Available for Import

ProTone M15V2 Passive Acoustic System for Concert Sound Applications

Acoustic Speaker Systems

Manufacturer: AKUSTIKA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

ProTone M15V2 is designed for use in concert systems of any power. It is based on a 15" coaxial driver consisting of a woofer/midrange module with a 4" coil and a compression driver with a 3" aluminium diaphragm and 1.4" output. The power of the components (700W woofer and 90W tweeter) and their high sensitivity (98dB woofer and 110dB tweeter) make it possible to create very high sound pressure levels, allowing musicians to hear themselves clearly even with the most powerful portable systems.

The shape of the enclosure and the 30x70 degree directivity pattern guarantee a uniform sound field in both near and far range. The M15V2 compares favourably with most competitors in terms of excellent intelligibility and exceptionally high resistance to feedback.

Specifications

Maximum sound pressure level emitted by the base unit speaker in the frequency range from 150 to 8000Hz

129

Minimum operating temperature

-15 °C

Maximum operating temperature

45 °C

Frequency range at (-3) dB level

65...18000

Sound Power (AES)

Flat grinder, Specialised grinder W

Directional diagram

Sensitivity

110

Nominal impedance

8 ohm

Maximum overall height of the system

367 mm

Maximum overall system length

454 mm

Maximum overall system width

650 mm

Maximum system weight

19 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
