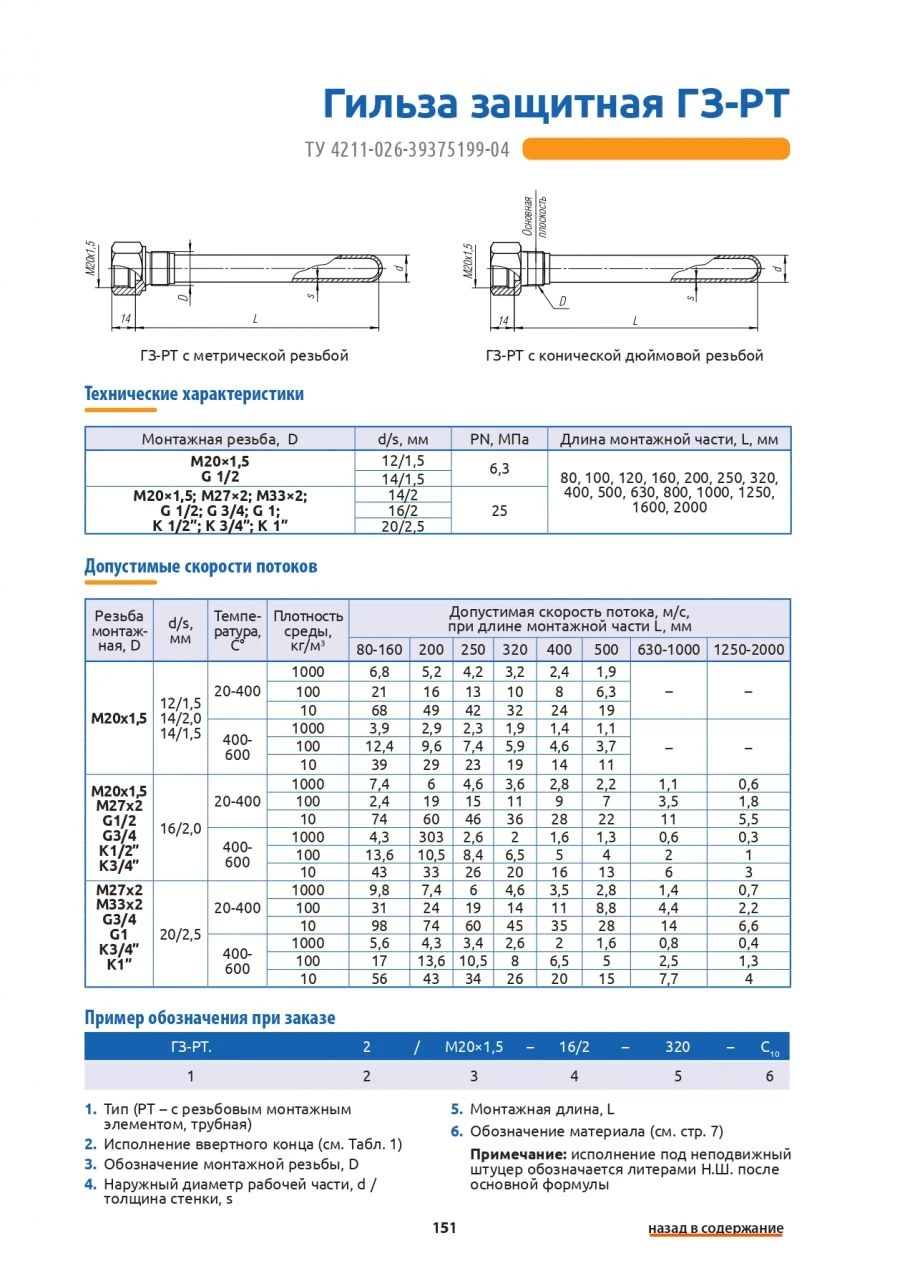

Protective Sleeve GZ-RT for Thermoelectric Sensors Installation

They are designed to prevent direct impact of the thermometrized medium on thermoelectric converters during their installation in pressure vessels, pipelines or other objects, Technical characteristics 1 The sleeves are non-repairable and non-replaceable products. 2 Protective sleeves of modifications GZ-RT, GZ-RC are manufactured with mounting thread: metric according to GOST 24705, cylindrical pipe thread according to GOST 6357, conical inch threads according to GOST 6111 and metric conical according to GOST 25229. Internal connection thread by default is M20x1,5 and can be produced on customer's request according to Russian or foreign standards. on customer's request according to Russian or foreign standards 3 Flanges of GZ-FT, GZ-FC sleeves are manufactured with sealing surfaces according to GOST 33259, as well as according to ASME B16.5 (USA) or EN 1092-1 (European Union).
