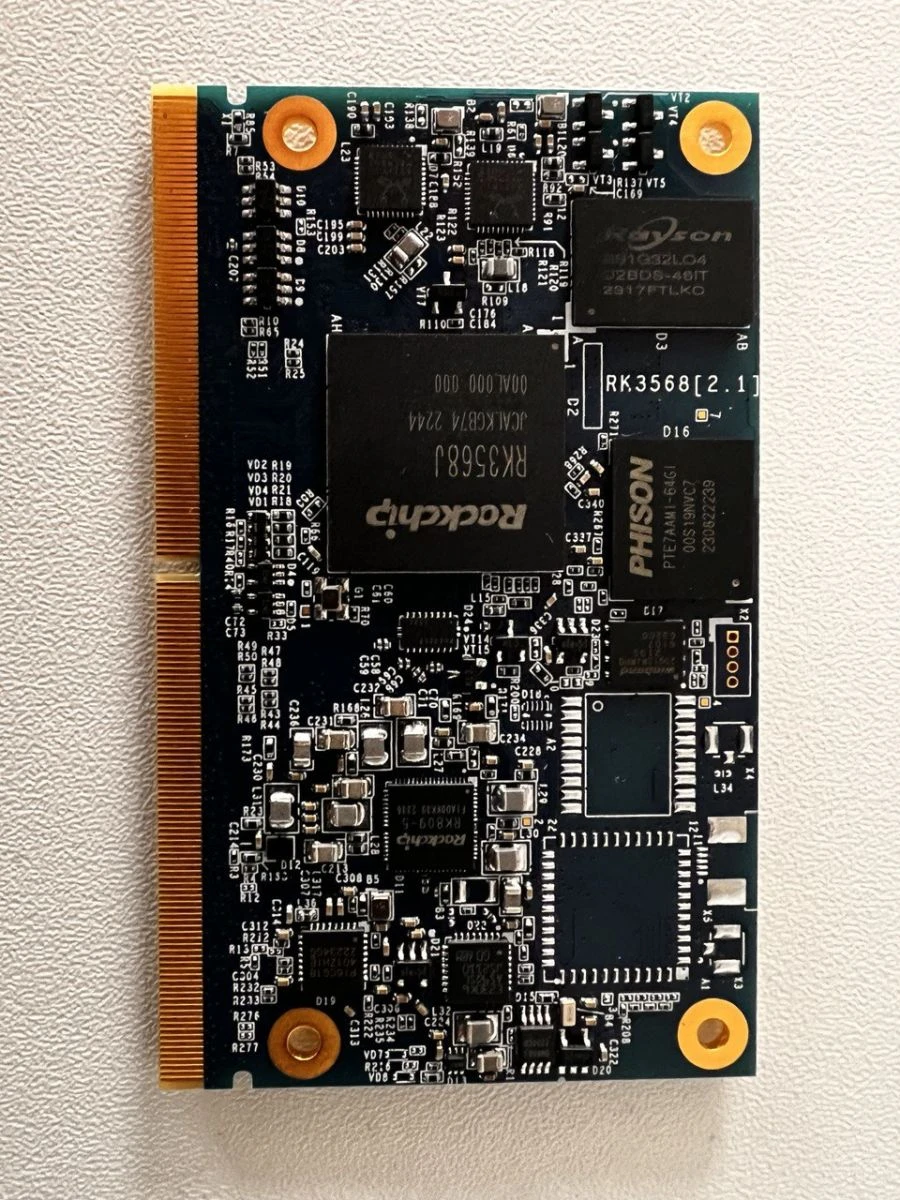

Processor module ATB-RK3568J-SMC ANPB.466216.003-01

Data Processing Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

A device for automatic data processing, fully ready for installation in information infrastructure, chassis, enclosures, or functioning in an enclosure-less version, made as a complete module of SMARC 2.0 and SMARC 2.1, containing: motherboard with soldered elements, RK3568 microprocessor, optional data storage chips or connectors and optional RAM chips or connectors, audio-video signal codecs with HDMI port as contact pads; optional communication modules or connectors for them; optional global navigation satellite systems modules or connectors for them; software "Initial Startup Programme for the RK3568 line of computing platforms" loaded into the non-volatile memory chip; other technical means, allowing to load programmes, to collect and process data, to control the device and other devices and networks connected to it, other functions

Technical Specifications

Cooling	Passive (fanless)
Power supply	5 V (10 W) and + 3.3 V (0.1 W) (via carrier board)
Processor	Rockchip RK3568J 4x Cortex-A55 2GHz
RAM	LPDDR4 2GB to 8GB (32 Bit)
Built-in storage device	EMMC Flash - 8GB to 256GB QSPI Flash - 256MB (optional)
Software	Initial start-up programme for RK3568 line of computing platforms
Supported connections	In accordance with SMARC 2.0 / SMARC 2.1 standard
Non-volatile memory	EEPROM 16 kbit
Network interface	2 x Ethernet 1G/100M
Wi-Fi/BT	Optional (to be installed according to supply contract)
GPS/Glonass	Optional (to be installed according to supply contract)
Real Time Clock	Got it

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
