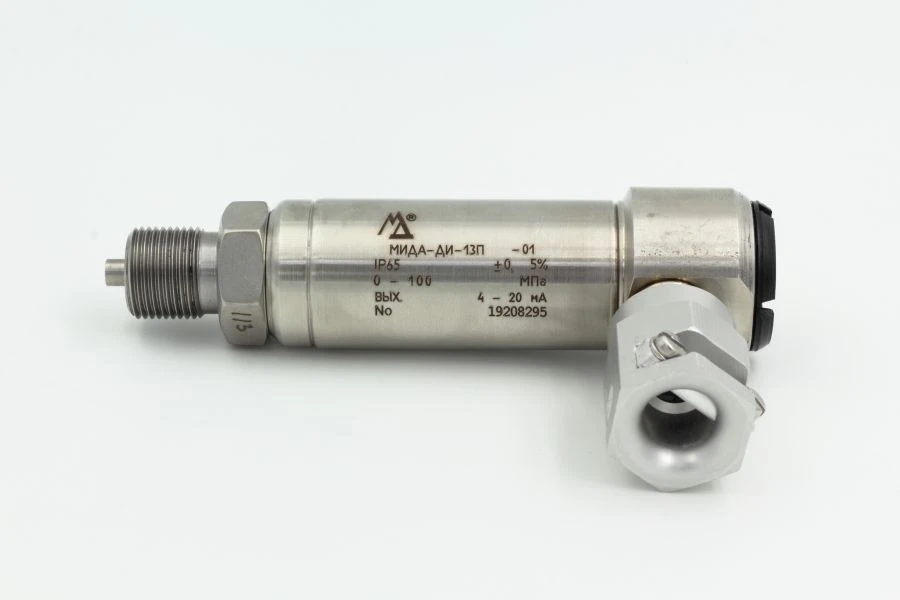

Pressure sensors MIDA-13P

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The MIDA-13P pressure sensors are designed for continuous conversion of gauge (DI), absolute (DA) pressure, vacuum (RV), gauge pressure - vacuum (RV) values of liquids and gases, non-aggressive to materials of contacting parts (titanium alloys and corrosion-resistant steel), into a unified DC signal or DC voltage in pressure monitoring and control systems, including food industry. The sensors are based on pressure strain gauges, which use strain gauges made of silicon-on-sapphire (SOS) heteroepitaxial structures.

Specifications

Inspection interval 5 a

Climatic designs UHL**3.1, U**1, U**2

Basic reduced error 0.5 %

Range reconfiguration depth 1:10

Overpressure-dissipation (OPD), upper measuring limit 0.002...2.4 MPa

Overpressure (OD), upper limit of measurement 0.004...160 MPa

Absolute pressure (YES), upper measuring limit 0.004...10 MPa

Warranty period 3 a

Output signal, mA 4...20

Dustproof IP65

Execution General industrial and explosion-proof

Output signal, V 0...10 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
