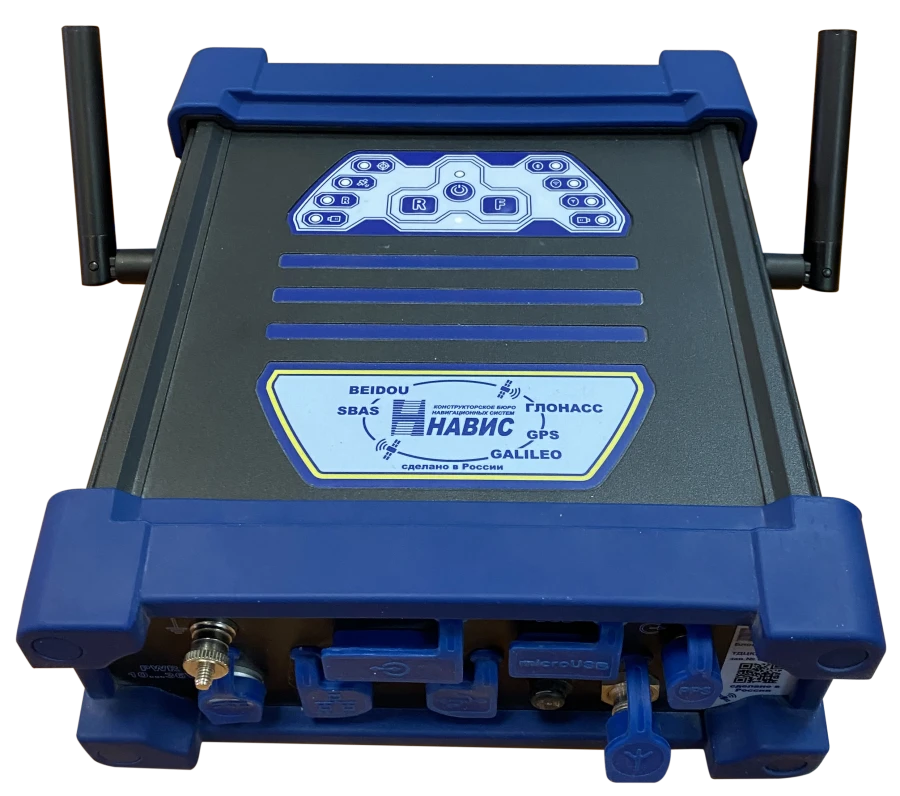

Precision Geodetic Equipment RC for High-Accuracy Positioning Tasks

Radio Navigation Equipment

Manufacturer:KB NAVIS OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The RS equipment is designed to solve geodetic tasks, tasks of high-precision positioning (determination of consumer coordinates in autonomous and relative modes, in real-time modes and accumulation of data in the internal flash memory with subsequent unloading via interface and post-processing) using GLONASS, GPS, GALILEO, BeiDou GNSS signals; creation of geodetic networks, networks of high-precision navigation, formation and issuance of corrective information.

Specifications

Received signals

L1OF, L1OC GLONASS; L2OF, L2OC GLONASS; L3OC GLONASS; L1 C/A code GPS; L2 CL/CM codes GPS; L5 GPS; L1C GPS; E1 GALILEO; E5A GALILEO; E5B GALILEO; B1, B1C BeiDou; B2, B2a BeiDou; SBAS in L1, L5 GPS frequency bands; SDCM in L1 GLONASS frequency band.

Number of processing channels

432

Location modes

Autonomous; differential (SBAS, RTCM SC104); RTK mode; PPP mode.

Offline positioning accuracy, in plan (RMS)

2 m

Positioning accuracy in differential code mode (RTCM), in plan (RMS)

6 m

Positioning accuracy in differential code mode (SBAS), in plan (RMS)

8 m

Location accuracy in differential phase mode (static), in plan (RMS)

5mm+1mm/km mm

Positioning accuracy in differential phase mode (RTK), in plan (RMS)

10mm+1mm/km mm

Interfaces

USB 2.0 Host (USB-A), speed up to 480 Mbps; USB 2.0 Device (micro USB), speed up to 480 Mbps; Ethernet, speed 10/100 Mbps; RS-232 speed up to 921600 bps; Wi-Fi IEEE 802.11 a/b/g/n, 2.4/5 GHz, speed up to 100 Mbps; Bluetooth 4.2; 2G/3G/4G mods

Exchange protocols

NMEA-0183 (IEC 1162), BINR2, RTCM SC-104 v2.3, v3.2, NTRIP, HTTPS, FTP and SSH.

Time stamp generation error (RMS), not more than ns

Operating temperature range

-40...60 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
