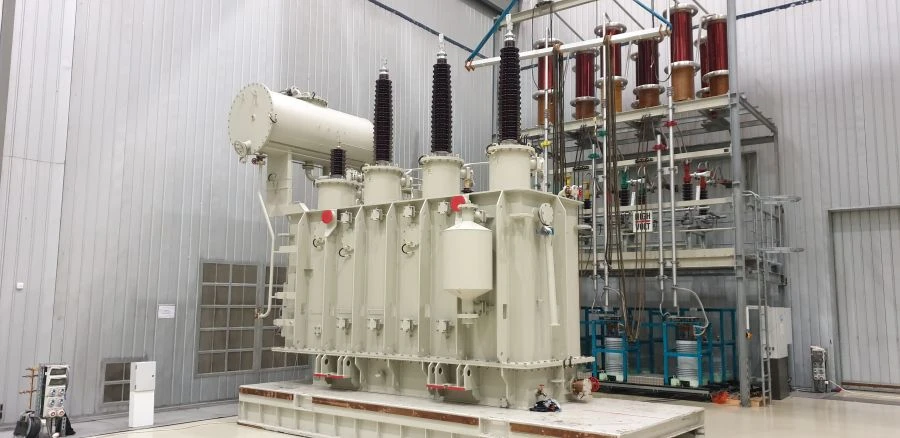

Power transformer TDN-40000/110-U1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST R 52719-2007, GOST-12965-93.
Rated power: 40000 kVA; Rated current of HV winding: 200,8 A, rated current of LV winding: 3665,7 A; Rated voltage of HV winding: 115 kV, rated voltage of LV winding: 6,3 kV; Number of phases: 3; Number of windings: high voltage windings, low voltage windings; Dielectric type: transformer oil.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST R 52719-2007, GOST-12965-93.
Rated power: 40000 kVA; Rated current of HV winding: 200,8 A, rated current of LV winding: 3665,7 A; Rated voltage of HV winding: 115 kV, rated voltage of LV winding: 6,3 kV; Number of phases: 3; Number of windings: high voltage windings, low voltage windings; Dielectric type: transformer oil.
Specifications
Type of insulation
Oil
Possibility of regulation under voltage
Armoured glass
Transformer type
Reducing
Number of transformer phases
Three-phase
Number of windings
Double-winding
Rated power
40000
Nominal voltage
6.3
