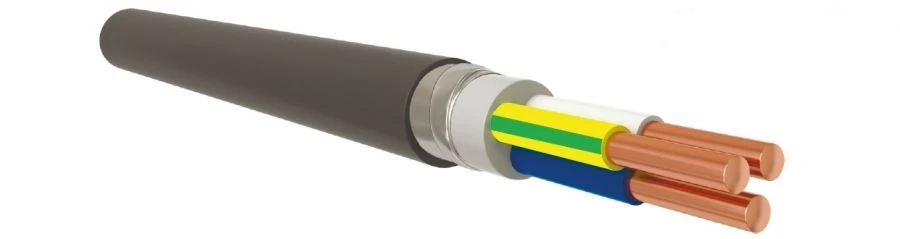

Power Cables with Plastic Insulation up to 1 kV VBSHvn(A)

Power Cables with Plastic Insulation up to 1 kV VBSHvn(A)

Brand: null

$0.60 - $6 USD

MOQ: 1000 meters

Key Features

Core cross section: 1,5;2,5;4;6;10;16;25;35;50;70;95;120;150;185;240 inch

Number of cores: 1,2,3,4,5 µGy

Insulation material: Polyvinyl chloride plasticate with colour marking

Number of conductive cores: 1,2,3,4,5 µGy

Supplier Information

GOSTKABEL LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

Cable round with copper conductors, with insulation made of PVC plasticate, armoured with steel tapes with protective hose made of PVC plasticate of reduced fire hazard, not spreading combustion in category A. The cable is intended for transmission and distribution of electric energy in stationary installations at rated voltage 0,66/1kV with rated frequency 50Hz. It is used in the air in the absence of danger of mechanical damage during operation; for laying dry or damp rooms, channels, cable floors; for laying in the ground, mines, collectors, production facilities, partially flooded structures in the presence of environment with weak, medium and high corrosive activity; for laying on special cable racks, on bridges and in blocks; for laying in fire-hazardous premises.

Specifications

Core cross section

1,5;2,5;4;6;10;16;25;35;50;70;95;120;150;185;240 inch

Number of cores

1,2,3,4,5 µGy

Insulation material

Polyvinyl chloride plasticate with colour marking

Number of conductive cores

1,2,3,4,5 µGy

Nominal cross-section of conductive cores

1,5;2,5;4;6;10;16;25;35;50,70;95;120;150;185;240 inch

Laying and installation of cables without preheating is carried out at temperature

at least -15 million m³

Long-term permissible core heating temperature during operation

No more than 70 million m³

Short circuit duration

No more than 5 -

Permissible heating temperature of cable cores in overload mode

Not more than 90 million m³

Limit temperature of core heating under conditions of short circuit non-flammability

no more than 350 million m³

Relative humidity at temperatures up to 35°C

98 set

Test AC voltage of 50 Hz frequency at 1 kV

3,5 billion m³

Maximum AC voltage of frequency 50Hz at 0.66 kV

0,72 billion m³

Maximum AC voltage of frequency 50Hz at 1 kV

1,2 billion m³

Armor

of two galvanized steel bands

Protective hose

polyvinyl chloride plasticate with reduced fire hazard

Mark

VBSHvng(A)

Size (Number of cores x Cross-section)

from 1x35 to 1x240; from 2x4 to 2x240; from 3x1,5 to 3x240; from 4x1,5 to 4x240; from 5x1,5 to 5x150

Design

Conducting core, insulation, sheath, armour, protective layer

Sheath material

Polyvinyl chloride plasticate of reduced fire hazard

Cable shape

Round

Test alternating voltage with frequency 50 Hz at 0.66 kV

3 billion m³

Number of wires in the core

1...37 µGy
