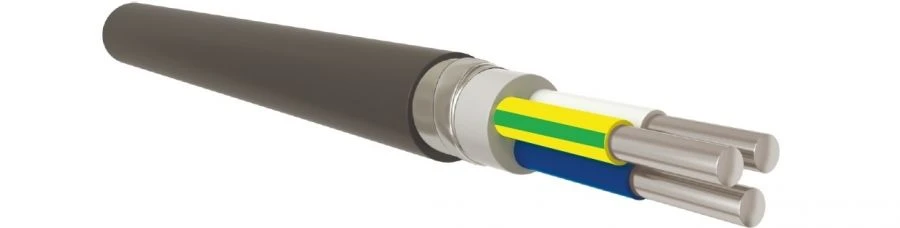

Power Cables with Plastic Insulation for Voltage up to 1 kV AVBShvng(A)-HL

Power Cables with Plastic Insulation for Voltage up to 1 kV AVBShvng(A)-HL

$0.90 - $3.60 USD

MOQ: 2000 meters

Key Features

Core cross section: 16;25;35;50,70;95;120;150;185;240 inch

Number of cores: 1,2,3,4,5 µGy

Core material: Aluminum

Nominal cross section of phase conductors: 16;25;35;50,70;95;120;150;185;240 inch

Supplier Information

GOSTKABEL LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

Cable round with aluminium cores, insulated with PVC plasticate, armoured with steel tapes with protective hose made of PVC plasticate of reduced fire hazard, not spreading combustion in category A, cold-resistant. The cable is intended for transmission and distribution of electric energy in stationary installations at rated voltage 0,66/1kV with rated frequency 50 Hz. It is used in the air if there is no danger of mechanical damage during operation; for laying in dry or damp rooms, channels, cable half floors; for laying in the ground, mines, collectors, industrial premises, partially flooded structures in the presence of environment with weak, medium and high corrosivity;
for laying on special cable trestles, on bridges and in blocks; for laying in fire-hazardous premises.

Specifications

Core cross section

16;25;35;50,70;95;120;150;185;240 inch

Number of cores

1,2,3,4,5 µGy

Core material

Aluminum

Nominal cross section of phase conductors

16;25;35;50,70;95;120;150;185;240 inch

Number of phase conductors

1,2,3,4,5 µGy

Laying and installation of cables without preheating is carried out at temperature

at least -15 million m³

Long-term permissible core heating temperature during operation

No more than 70 million m³

Short circuit duration

No more than 5 -

Permissible heating temperature of cable cores in overload mode

Not more than 90 million m³

Limit temperature of core heating under conditions of short circuit non-flammability

no more than 350 million m³

Test AC voltage of 50 Hz frequency at 1 kV

3,5 billion m³

Maximum AC voltage of frequency 50Hz at 0.66 kV

0,72 billion m³

Maximum AC voltage of frequency 50Hz at 1 kV

1,2 billion m³

Armor

of two galvanized steel bands

Protective hose

polyvinyl chloride plasticate with reduced fire hazard and increased frost resistance

Mark

AVBSHVng(A)-HL

Filler material

Polyvinyl chloride plasticate of reduced fire hazard

Insulation material

Polyvinyl chloride plasticate with colour marking

Sheath material

polyvinyl chloride plasticate with reduced fire hazard

Calculated weight

1 m² living area

Insulation material of phase conductors

Polyvinyl chloride plasticate with colour marking

Climatized version

-50...50 million m³

Test alternating voltage with frequency 50 Hz at 0.66 kV

3 billion m³
