Available for Import

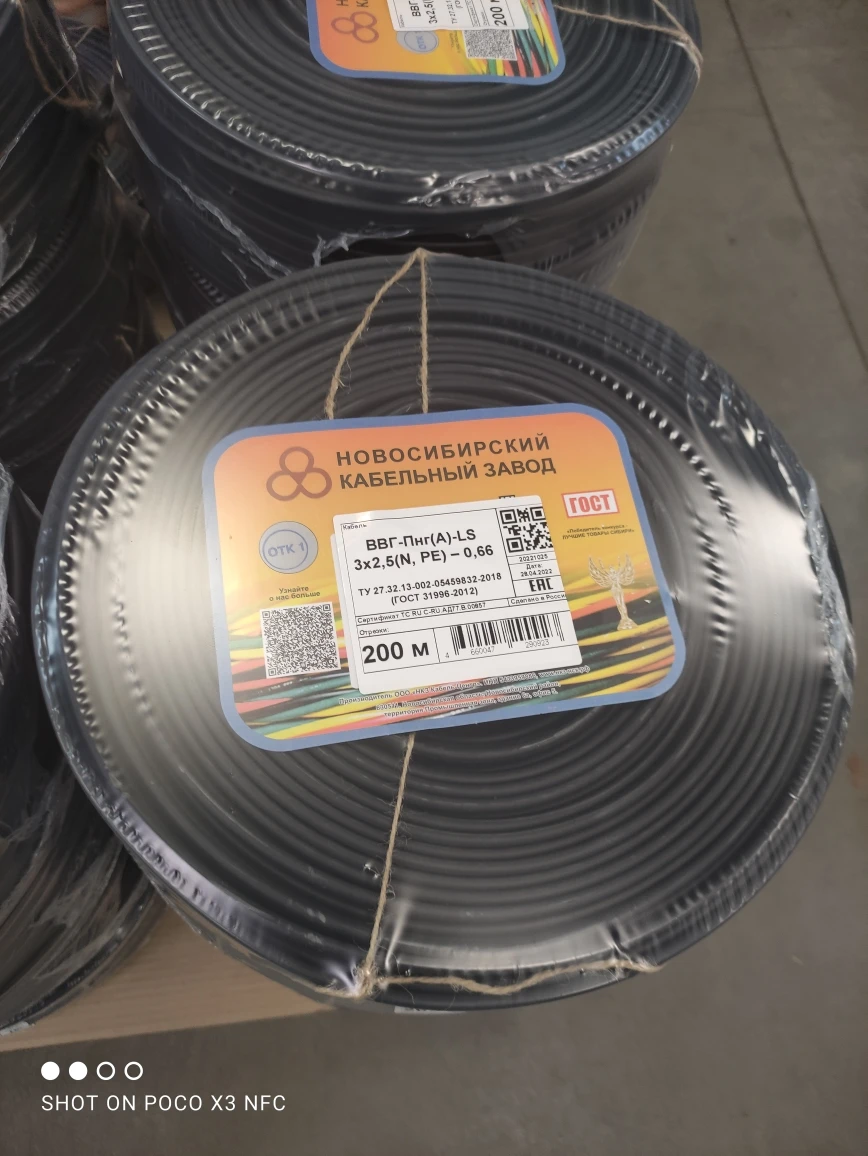

Power cables with plastic insulation for rated voltage 0,66 kV

Copper Power Cables 1kV

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Power cables for rated voltage 0,66 kV, with copper conductors number from 1 to 5 inclusive, cross-section from 1,5 mm2 to 50 mm2 inclusive, with insulation and sheathing made of polyvinylchloride plasticate or polymer compositions, halogen-free, including those not spreading combustion, with low smoke and gas emission, low toxicity of combustion products, fire-resistant, VVG, VVGng(A)-LS, VVGng(A)-FRLS, PPGng(A)-HF, PPGng(A)-FRHF, VVGng(A)-LSLTX, VVGng(A)-FRLSLTx. When cables are manufactured in flat version, the letter "P" is added to the cable brand. The products are manufactured in accordance with TU 27.32.13-002-05459832-2018 "Power cables with plastic insulation for rated voltage of 0.66 and 1 kV. Technical conditions". Serial production. Conforms to the requirements of ?? ?? 004/2011 "About safety of low-voltage equipment". OKPD 2 OK 034-2014 code: 27.32.13.111

Specifications

Availability of reservations no

Rated AC voltage 0.66 kV

Nominal cross-section of conductive cores SBVVBG mm2

Number of conductive cores 5

Rated AC voltage 0.66 kV

Material of conductive cores Copper rod

Insulation material of conductive cores Polyvinylchloride plasticate, polymer compositions

Armor type no

Outer sheath material (if no armor) Polyvinylchloride plasticate, polymer compositions

Material of protective hose (if armor is available) no

Availability of metal screen no

Fire hazard class O1.8.2.2.5.4; P1a.8.2.5.4; P1b.8.2.5.4; P1a.8.2.2.2; P1b.8.2.2.2; P1a.8.2.1.2; P1b.8.2.1.2; P1a.8.1.1.2; P1a.8.1.2.1; P1b.8.1.2.1; P1a.1.2.2.2; P1b.1.2.2.2; P1a.1.2.1.2; P1b.1.2.1.2; P1a.1.1.2.1; P1b.1.1.2.1; P1b.1.1.2.1.

Cable cross-sectional shape Round or flat

Design of conductor core(s) Monofilament or stranded TPW

Nominal cross-section of conductive cores SBVVBG mm2

Number of conductive cores 5

Cable shape Round or flat

Mark Power cable

Design Conducting core (monocore or stranded), insulation, sheathing

Sheath material Polyvinylchloride plasticate, polymer compositions

Insulation material Polyvinylchloride plasticate, polymer compositions

Number of wires in the core 7 pc

Number of cores 5 pc

Core cross section SBVVBG mm2

Operating voltage 0.66 kV

Size (Number of cores x Cross-section) Number of cores from 1 to 5, cross section from 1,5 to 50 mm2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
