Available for Import

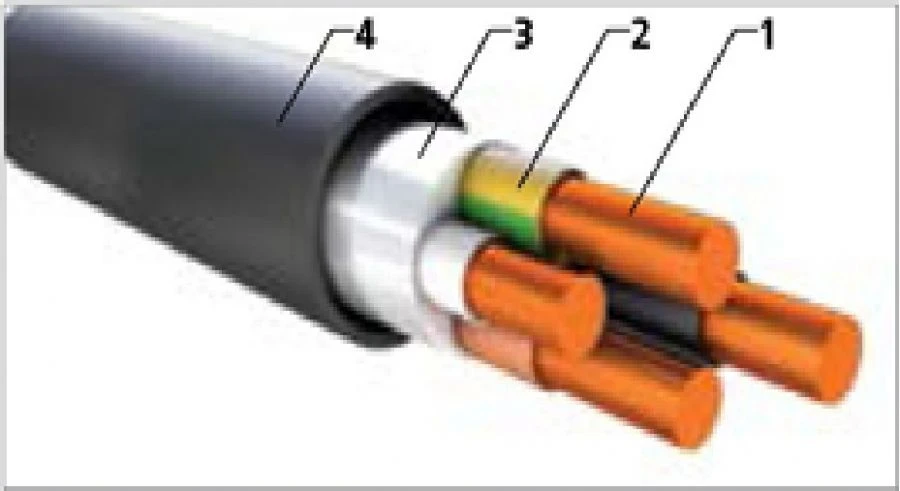

Power cable with plastic insulation for voltage 0,66 and 1 kV VVG
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Seal cables with copper conductors, with insulation and sheath made of polyvinylchloride plasticate are intended for transmission and distribution of electric energy in stationary installations at rated alternating voltage of 0,66 and 1 kV with rated frequency of 50 Hz or at constant voltage up to 1 and 1,5 kV respectively.
Specifications
Core design
Conducting core - copper single or multi-conductor, round or sector shape, corresponds to class 1 or 2 according to GOST 22483.
Filling between insulated conductors
Polyvinyl chloride
Type of sheathing and protective cover
Polyvinyl chloride
Number of conductive cores
1...5 pc
Nominal cross sections of conductor cores
6...240 mm2
Nominal voltage
66 kV
Conducting core material
Copper
Mark
BBG
Core material
Copper
Core diameter
1...5 mm
Insulation material
Polyvinyl chloride
Sheath material
Polyvinyl chloride
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
