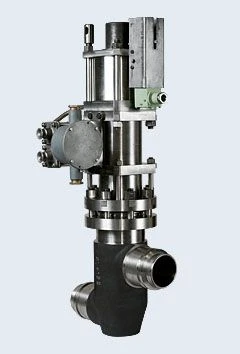

Pneumatic Actuated Bellows Shut-off Valve DN 100 ZT96547

Pneumatic Actuated Bellows Shut-off Valve DN 100 ZT96547

$3,000 - $18,000 USD

MOQ: 1 pieces

Key Features

Pressure, Rp: up to 20.0 mpa (200 kgf/cm²)

Operating medium temperature: up to 335 °C

Housing material: 08CR18NI10T

Operating medium: i circuit coolant, makeup water, trap water, salt concentrate, oil, nitrogen, steam, steam generator feed water, steam generator blowdown water, i circuit gas blowdowns, feed water, condensate, cooling water for the drying circuit, radioactive

Supplier Information

Znamia Truda OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

Applied for installation in normal operation and safety systems.

Supplied domestically and for export, including countries with tropical climates..

Specifications

Pressure, Rp

up to 20.0 mpa (200 kgf/cm²)

Operating medium temperature

up to 335 °C

Housing material

08CR18NI10T

Operating medium

i circuit coolant, makeup water, trap water, salt concentrate, oil, nitrogen, steam, steam generator feed water, steam generator blowdown water, i circuit gas blowdowns, feed water, condensate, cooling water for the drying circuit, radioactive

Pipeline connection

Welded

Permissible leakage in the gate, cm³/min

dn 25–15; dn 32–18; dn 50–30;dn 80–70; dn 100–120; dn 150–150;

Direction of medium flow

on and under the spool

Valve control

zt96546 - from pneumatic actuator of normally-open (NO) action with pneumatic valve t055.077mzt96547 - from pneumatic actuator of normally-closed (NC) action

Method of signaling

local and remote

Control medium in pneumatic actuators

air with temperature from -10 to +60 °C

Control air pressure in the pneumatic actuator Rupr

4.5 mpa (45 kgf/cm²), pressure increase up to 5.5 mpa (55 kgf/cm²) is allowed. in case of emergency mode "big leak" with temperature increase up to 150 °C the air pressure in the closed volume is increased up to 8 mpa (80 kgf/cm²).

Control air pressure drop, max.

0.01 mpa/h (0.1 kgf/cm2/h)

Control air flow rate for one actuation, not more, m3

zt96546 - 0.04 ; zt96547 - 0.01 to 0.05

Contamination class of control air

not higher than 7 according to gost 17433

Opening/closing time

No more than 10 s

Setting position

any

Media flow direction

on and under the spool

Classification designation of the valve

2biia, 2biiv per np-068-05

Seismic resistance category

i by np-031-01
