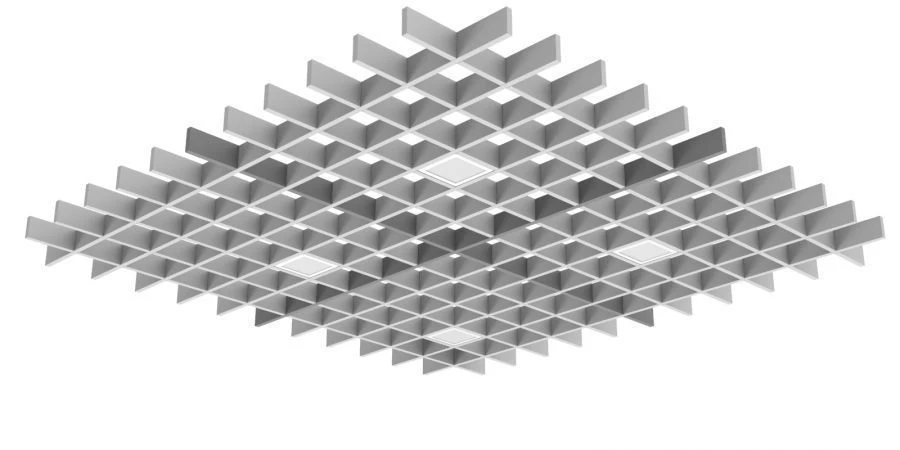

Phoenix 22W-DXyz Modular LED Light Fixture for Office and Commercial Use

LED Ceiling & Wall Lights

Manufacturer: Durey OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Modular luminaire economy - class "Phoenix" is ideal for lighting office, administrative and commercial premises. It can also be used in the design of stairwells and stairways, corridors, foyers, cloakrooms and reception areas as a complement to general lighting, or independently providing the necessary level of illumination. Modification Phoenix 22W 100 includes 4 modules with a total power of 22 W.

Specifications

Power consumption

22 W

Protection class against electric current

IK code

Power factor

0.97

Type of supply current

Variable

Type of lamps (LED, incandescent, fluorescent)

LED

Width

104 mm

Length

104 mm

Luminous flux, lm

3570 lm

Height

44 mm

Housing material

structural steel st 08

Double angle half brightness

cosine

Optical element material

polycarbonate opal

Color temperature (K)

5000 K

Pulsation factor

1 %

Color rendering index (Ra)

Rated supply voltage

230 V

Light distribution class

p - direct light

Brightness limitation category

0-90

Overall brightness, cd/m2

0...5000

Type of emergency luminaire

Upper operating temperature value

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording °C

Gross weight

1.45 kg

Lower operating temperature value

1 °C

Model

4 modules

Climatic version

UHL4

Type by installation location

recessed in a grillato ceiling

Form

square

Dimmer type

dali

Dimmable luminaire

Armoured glass

The first characteristic digit of the degree of protection designation, not less than

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
