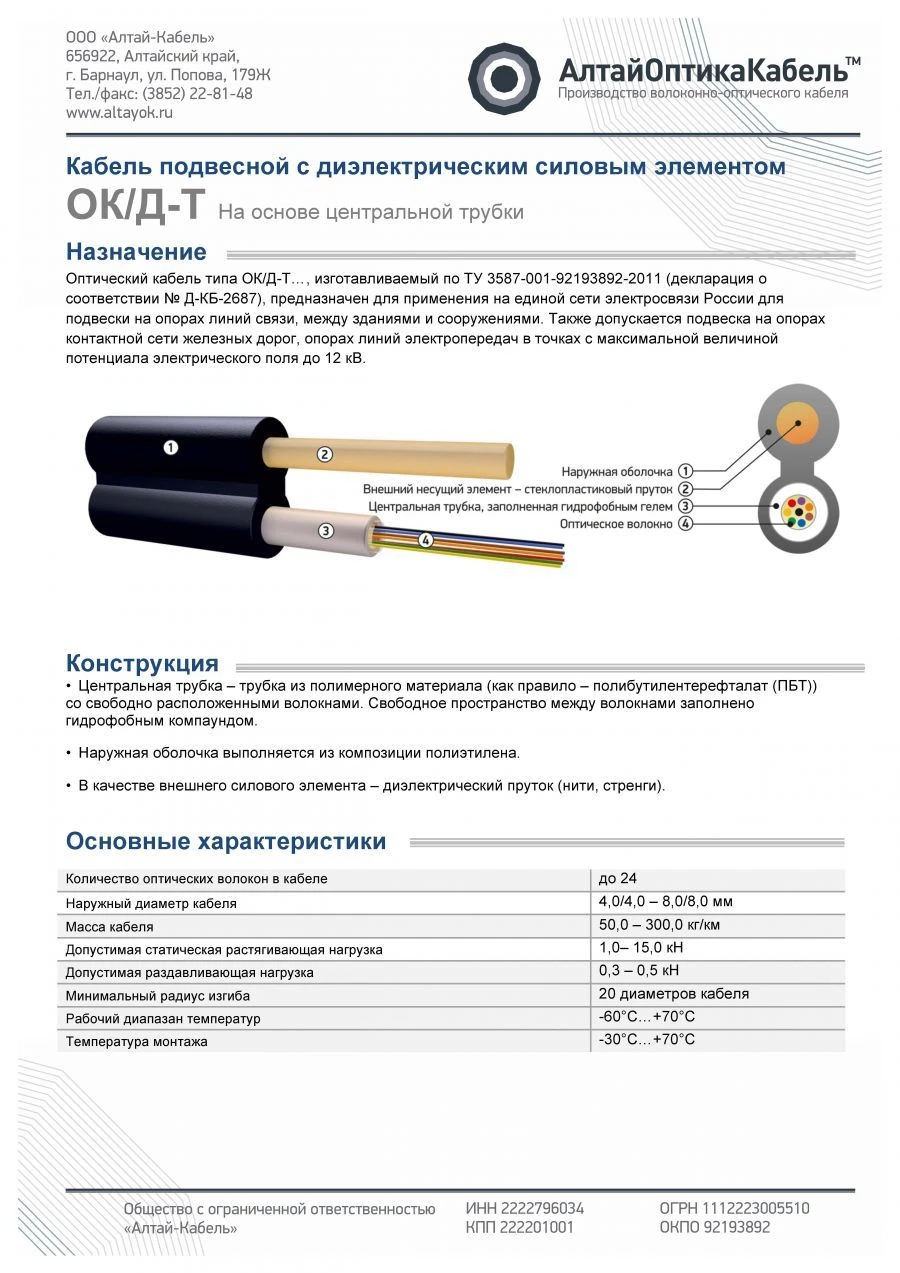

Optical Communication Cable OK/D-T for Suspension in Various Applications

Fibre-optic cable for suspension on communication line supports, railway contact network, lighting supports and power transmission lines at points with maximum electric field potential up to 12 kV, power facilities, on facades of buildings, between buildings and structures, can be used in cable ducts, cable trays, in pipes, tunnels, collectors, on bridges and overpasses, inside buildings and structures. The cables can contain up to 48 optical fibres. The cables are manufactured using fibres produced in the territory of the EAEU member states.

Attenuation coefficient at the operating wavelength, dB/km: for ?=1310nm not more than 0.35; for ?=1550nm not more than 0.22. Cable operation temperature is from minus 60º? to plus 70º?.

Permissible tensile load is not less than 1,5 kN.
