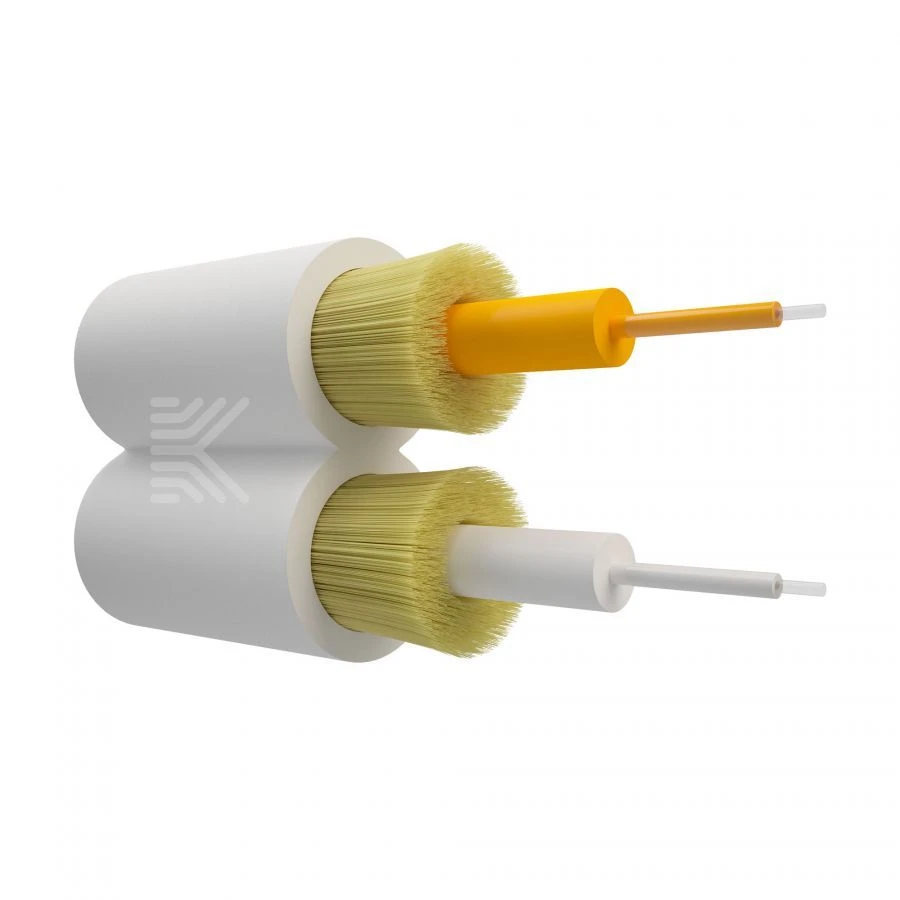

Optical Communication Cable NTSS-Duplex for Efficient Data Transmission

Individual Sheathed Fibre Cables

Manufacturer: PRODUCTION GROUP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Optical communication cable NTSS-Duplex is designed for application on the unified telecommunication network of the Russian Federation. Two-fibre distribution cable of twin design is used indoors, for making patch cords and test cords, organising connections in patch panels, laying up to the workplace. It is suitable for termination with connectors and as an interconnect cable for interconnection organisation.

Various types of fibres are used in production, including bend-resistant fibres produced in the territory of the Eurasian Economic Union member states. Optical fibres are protected by a dense buffer coating made of flame retardant low smoke halogen free compound (LSZH). The structure is reinforced with reinforcing polyester or aramid yarns.

A tubular sheath made of non-combustible material is applied on top.

Specifications

Type of optical fibers

G.651, G.652.D, G.655, G.657.A, ISO/IEC 11801

For G.652.D/G.657.A1 fibers, the attenuation coefficient at the operating wavelength for ?=1310nm is not more than, dB/km

0.36

For G.652.D/G.657.A1 fibers, the attenuation coefficient at the operating wavelength for ?=1550nm is not more than, dB/km

0.22

For OM1 fiber the attenuation coefficient at the operating wavelength for ?=850nm is not more than, dB/km

2.5

For OM1 fiber the attenuation coefficient at the operating wavelength for ?=1310nm is not more than, dB/km

0.8

For OM2, OM3, OM4 fibers the attenuation coefficient at the working wavelength for ?=850nm is not more than, dB/km

2.5

For OM2, OM3, OM4 fibers the attenuation coefficient at the working wavelength for ?=1310nm is not more than, dB/km

0.7

Permissible tensile load during operation

150

Power element

Polyester or aramid yarns

Fiber buffer coating and cable outer jacket

Flame retardant low smoke halogen free compound (LSZH)

Dielectric design

Armoured glass

Operating temperature, ºC

-40…+70

Data transfer

Short distances

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
